Primary Voltage Ratings: 46kV/34.5kV
Secondary Voltage Ratings: 13.8kV
TYPE: Oil-Filled, Outdoor, Station Type, Power Transformer
BIL: 250/200kV
Standards: IEEE
Application: Renewables
Power Rating: 16.2MVA / 21.6MVA / 27 MVA
Cooling Method: ONAN/ONAF1/ONAF2

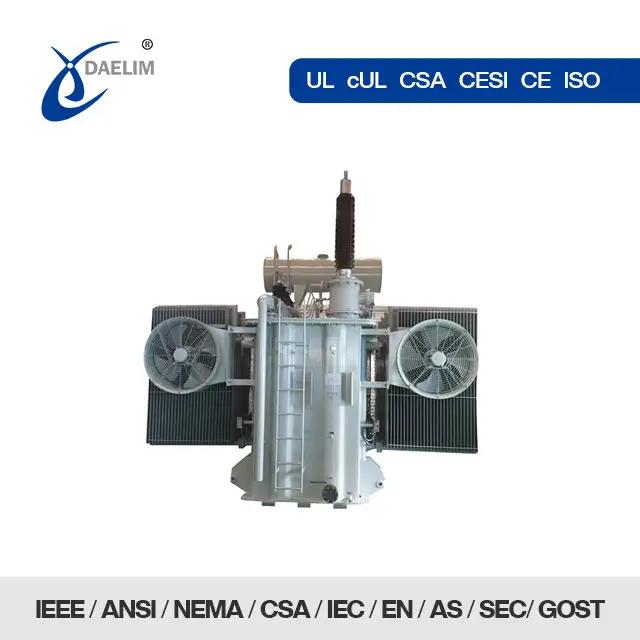

Daelim Transformer is proud to offer advanced 16.2 / 21.6 / 27 MVA Generator Step-Up Transformers designed for optimal performance and efficiency. Our transformers feature high-quality copper windings, a robust silicon steel core, and versatile cooling systems. With ratings up to 27 MVA and compliance with ANSI, IEEE, and NEMA standards, they ensure reliable operation and adaptability. Daelim Transformer delivers cutting-edge solutions to meet the evolving needs of the energy sector, driving sustainability and excellence.
In September 2024, Daelim Transformer proudly supplied two state-of-the-art 16.2 MVA / 21.6 MVA / 27 MVA Generator Step-Up Transformers to a leading renewable energy client in the United States. Our commitment to quality and innovation ensures that every transformer we deliver meets the highest standards of performance and reliability.
Daelim Transformer is dedicated to providing cutting-edge solutions that enhance energy efficiency and sustainability. With decades of experience and a reputation for excellence, we offer transformers designed to meet the evolving demands of the energy sector.
All transformers, components (including, but not limited to, all threaded fasteners), and materials conform to the applicable standards of ANSI, ASME, ASTM, IEEE, and NEMA. They meet all industry and safety standards and are designed, fabricated, and tested according to ANSI/IEEE C57 Series, NEMA TR1, and these specifications.
The Generator Step-Up Transformers feature a three-winding core type with the following voltage ratings:
Cooling is provided in two stages:
Winding Material: Both HV and LV windings are made of high-quality copper.
Each transformer is engineered to:
The impedance between the high-voltage and low-voltage windings at the self-cooled rating is 8.5%.
The transformer core utilizes high-quality, non-aging silicon steel with superior permeability and low hysteresis losses. The core is grounded at a single point, and core grounding is brought out on the cover through a bushing and grounded externally to facilitate testing.
The core ground is brought out of the transformer tank through a 1.2 kV bushing and connected to the tank via a disconnectable link.
All windings are crafted from copper to minimize eddy current losses and ensure optimal mechanical strength. All conductor joints are brazed or welded for maximum reliability.
The angular displacement between the high-voltage and low-voltage winding vectors is 30°, with the low voltage X1 lagging the high voltage H1, H2, H3 rotation. The phasing and polarity of the transformer conform to ANSI Standard C57.12.70.
Each transformer is equipped with a de-energized tap changer on the HV winding featuring 5 positions:
The tap changer includes a tap position indicator and provisions for padlocking the operating mechanism in any tap position. The indicator is visible from the ground, and the handwheel or lever is easily operable from the ground.
The transformer tank, all oil-filled compartments, and accessories are designed to withstand full vacuum. The cover is welded and includes lifting eyes, a mechanical pressure-relief device, two manholes for inspection, and mounting bushings.
The pressure relief device is self-resealing and requires no replaceable parts to restore it to working condition after activation. The device operates at a pressure lower than the maximum pressure the tank and cover are designed to withstand and includes a mechanical trip indicator and alarm contacts.
The transformer is equipped with lifting attachments for the removal of covers, radiators, or radiator banks.
The temperature rise by resistance may reach but not exceed 65°C. The hottest spot temperature rise will not exceed 80°C over an ambient temperature of 40°C, provided the average temperature of the cooling air for any 24-hour period does not exceed 30°C, ensuring the longevity of the transformer.
The cooling system includes fans, pumps, drive motors, integral piping, and controls. The equipment features the following contacts suitable for operation on 125 VDC:
The cooling system controls include, but are not limited to, combination motor starters, relays, terminal blocks, CPT, and circuit breakers. Each fan is individually protected with a suitable thermal device. The cooling system control is designed to allow either group to operate preferentially as the first or second stage of cooling, with the option to reverse the order to equalize wear between the two groups.
Radiator-type coolers are equipped with fans designed to operate automatically from the winding temperature relay control and manually from an ON-OFF switch in parallel with automatic control.
Fan motors are totally enclosed, weatherproof, and rated for continuous duty. They include overload protection, circuit protection, magnetic contactors, and a manual control switch mounted in a weatherproof cabinet. Integral horsepower motors have a NEMA Design B torque characteristic unless otherwise specified by the driven equipment.
Daelim Transformer—where innovation meets reliability. Trust us to deliver exceptional performance and efficiency, transforming your energy solutions for a sustainable future.
