Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 ,27.6/16, 14.4/7.2 or others
Secondary Voltage Ratings: 120-240/240-480/347/600 or others
H.V. TAP RANGE: ±2×2.5% or others
CONNECTION TYPE: Delta/Wye
TYPE: Dead front/Live front
BIL: 30-150
Standards: CSA IEEE NEMA DOE
Application: ultilities, residential, single family house, commercial district
Power Rating: 25 kVA
Daelim 25 kVA pad mounted transformer meets/exceeds DOE 2016 efficiency ratings with UL/cUL listed. Design and production with ANSI/IEEE, CSA standards. The Daelim Transformer’s single-phase pad-mounted transformer has numerous applications in the United States and Canada, especially for utility companies and transformer distributorsThe single-phase pad-mounted transformer is a versatile solution with a wide range of applications throughout North America. It is particularly well-suited for use by utility companies, distribution networks, and residential areas, where it serves a multitude of important functions.
| 25 kVA Transformer Specifications | |||
| Phase | 1 phase | Std. | CSA C227.3 |
| Power rating | 25 kVA | Fluid | Mineral Oil |
| Mounting | Pad Mount | Frequency | 60Hz |
| HV Voltage | 24940GRDY/14400×12470GRDY/7200 | Tap changer | 5-position |
| LV Voltage | 240/120 | Fluid Capacity | 295 L |
| HV BIL | 125×95 kV | Total weight | 600 KG |
| LV BIL | 35 kV | HV Bshg. | bushing well |
| Polarity | Additive | LV Bshg | 7 holes |
| Cooling method | ONAN | Impedance | 1.50% |
| Winding Material | Aluminum | Paint Color | Munsell green |
| Efficiency | 98.63% | Fuses | Bayonet & ELSP fuse |
Contact Daelim Transformer for special requirements
| 25 kVA Transformer Accessories | |||
| Name | Qty | Name | Qty |
| Bolt for lifting | 4 | Pressure relief valve | 1 |
| Hinged door | 1 | ELSP fuse | 1 |
| Parking stand bracket | 1 | Bayonet fuse | 1 |
| Flip top cover | 1 | Four-position load break switch | 1 |
| LV bushing | 3 | Tap changer | 1 |
| Pentahead bolt arrangement | 1 | DV switch | 1 |
| Fill plug | 1 | Insert with dust cap | 2 |
| Drain valve | 1 | Grounding bracket | 1 |
| Ground strap copper | 1 | Oil level gauge | 1 |
| HV bushing well | 2 | Drip tray | 1 |
| Grounding spade terminal | 2 | Equipotential device | 1 |
| Name plate | 1 | Clamp | 2 |

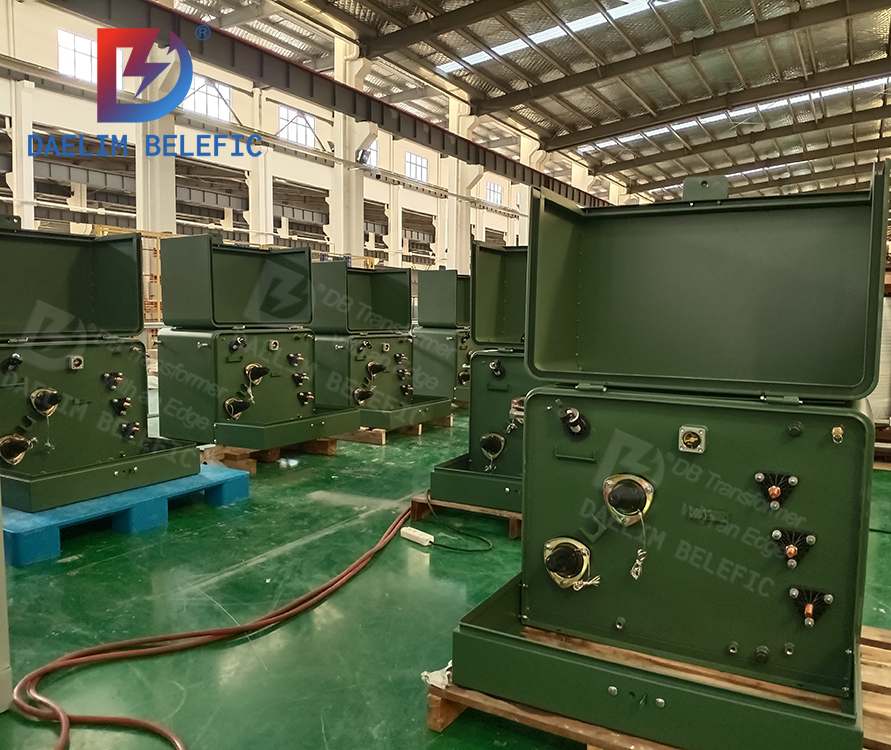

The ZGDL-H-25/14.4(7.2)/0.24(0.12) is a 25 kVA single phase pad mounted transformer. It is a residential transformer designed and produced by Daelim Transformer for Canada. The customer is a local distributor. This batch of orders includes a total of 8 units 25 kVA transformers, mainly to provide power distribution products for local residential areas. Daelim Transformer’s 25 kVA single phase pad mounted transformer can provide powerful, reliable, safe and efficient power distribution for residential and commercial areas. It has the characteristics of low operating cost, easy installation, long service life and environmental protection.
The 25 kVA transformer with a power rating of 25 kVA, the high voltage of the transformer is 24940GRDY/14400×12470GRDY/7200V, which is a dual high voltage design. Customers can switch between 14.4kV and 7.2kV through a dual voltage switch according to the distribution line. There is a five-position voltage regulating switch on the high-voltage side, which can allow small changes in voltage within ±2 * 2 ½%.
The low voltage is 240/120V. The frequency is 60 Hz. The transformer is equipped with aluminum windings. The primary and secondary potentials in the same magnetic flux are in the same direction and have positive polarity. The transformer has an efficiency value of 98.63% and complies with CAN/CSA 802.1 standards. The impedance value is 1.5%. The high-voltage side has a casing well and an insert with a dust cap. The low-voltage side has three seven-hole spade terminals.
The 25 kVA transformer has bay o net fuse and ELSP fuse to form a double fuse system to protect the transformer from damage in circuit faults. The transformer comes complete with an oil level indicator and a 4-position load break switch, adding to its versatility and ease of maintenance.
Daelim Transformer’s ZGDL-H-25/14.4(7.2)/0.24(0.12) transformer embodies the perfect blend of advanced technology, uncompromising quality, and a customer-centric approach. We take pride in providing solutions that empower communities with efficient, reliable, and safe power distribution, making us the preferred choice for residential and commercial applications in Canada.
Down Loads
Daelim Single Phase Pad Mounted Transformer Catalog
Daelim Single Phase Pad Mounted Transformer Operation And Maintenance Manual
Learn more about Single Phase Pad Mounted Transformer

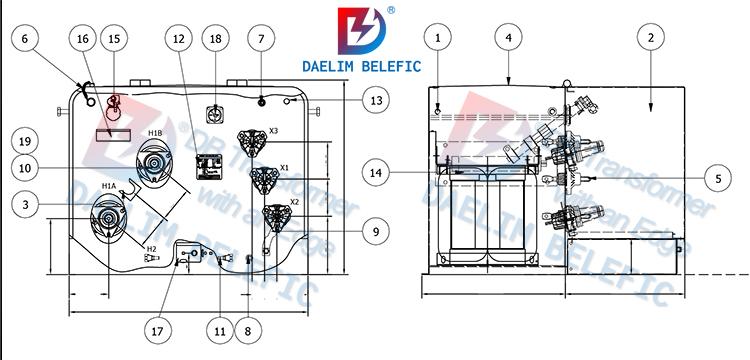

| Model: ZGDL-H-25 12.47Y/7.2-24.94Y14.4-240/120 | HV BIL: 125 kV |
| Standard manufacturing and testing: C.57.12.00; C.57.12.28; C57.12.90 | LV Insulation class: 1.2 kV |
| Type： Loop feed pad mount | LV BIL: 30 kV |
| Installation： Outdoor | Audible sound level: 48db |
| Altitude above sea level/Ambient temperature:1000m/20℃ | |
| Altitude≤1000m | |
| Rated Power:25 kVA | Impedance: 2% |
| HV: 12470Y/7200V,24940Y14400 | Impedance tolerance: ±10% |
| LV: 240/120 | Tank: Mild steel |
| Rated Frequency: 60Hz | Colors: Munsell Green |
| Cooling System: ONAN | Height:: 700mm |
| Core material: Silicon Steel Core | Depth: 1000mm |
| Refrigerant:: Mineral oil 45# (PCB FREE) | Width: 900mm |
| Working-Temperature: -45°C to +40°C | Weight |
| The temperature rise -Top oil: 65°C | Oil weight: 135kg |
| The temperature rise –Winding: 65°C | Total weight: 360kg |
| Hot spot:: 80°C | |
| No load losses at 105% rated voltage: 125W | Contact us for special requirements |
| Load loss at the rated voltage at 85°C: 441W | Tel: +1-346-342-2174 |
| Winding material: Aluminum | www.daelimtransformer.com |
| HV Insulation class:25 kV | Email: sales@daelimbelefic.com |
Daelim 25 kVA single phase pad mounted transformer operates safely, reliably, and efficiently and can be installed indoors and outdoors. This type of transformer has a low operating cost, is environmentally friendly, easy to install, and has a low purchase cost, so it is widely used in residential, commercial, and other public places.
Transformer Features: The industrial transformer has a rated power of 25 kVA.The unit transformer is a dual high-voltage design. The high voltages are 12470y/7200V and 24940y/14400V.
The ZGD-H-25/12.47/7.2-24.94/14.4-240/120 transformer is an ONAN cooling method. The manufacturing and testing standard are IEEE C.57.12.00; IEEE C.57.12.28; IEEE C57.12.90
Learn more about Pad Mounted Transformer
Insulation Fluid: The ZGD-H-25/12.47/7.2-24.94/14.4-240/120 transformer uses mineral oil 45#. The boiling point and instant ignition point of mineral oil are not lower than 140°, and it is not flammable. It has good insulation and heat dissipation effect, which not only improves the insulation strength but also protects against moisture erosion. Does not produce PCB and other harmful gases. It is harmless to people. If you need vegetable oil, Daelim can provide two brands of FR3 and RAPO for you to choose from.
Tap Changer: The ZGD-H-25/12.47/7.2-24.94/14.4-240/120 transformer has no tap changer. Daelim can provide 5 position and 7-positon no-load tap changer.
Core&Coil Assemble: 1
Bayonet fuse: 1
Drip shield Assembly: 1
Fuse Holder: 1
Backup fuse: 1
Fuse assembly: 1
Pressure relief valve: 1
Oil level gauge: 1
Oil-in flug: 1
Nameplate: 1
HV bushing well and insert: 2
No-load tap changer: 1
Grounding spade terminal: 2
Oil-out plug: 1
Bolt for earth: 1
Copper strip: 1
LV Terminal: 3
Bolt for lifting: 4
Daelim is a professional pad mounted transformer manufacturer. Pad mounted transformer has UL/cUL, CSA, CESI, and other certificates. Can meet the requirements of various international standards, such as ANSI/IEEE, CSA, and DOE efficiency value.
