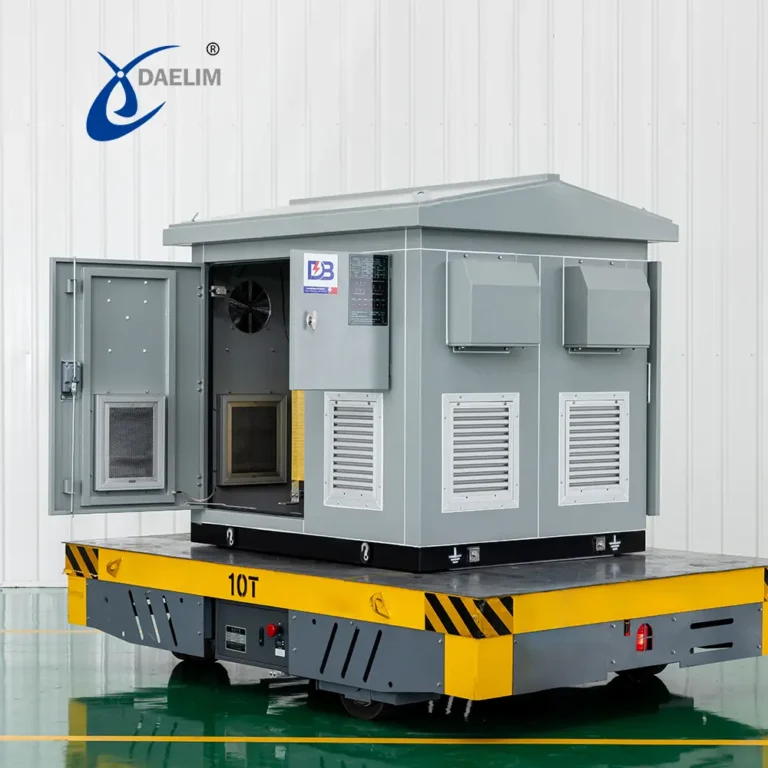

1000 kVA 480V Dry-type Isolation Transformer

Name: 1000 kVA 480V Dry-type Isolation Transformer
Brand: Daelim Transformer
SKU: 13422
Availability: InStock
Rating: 5 (1 reviews)

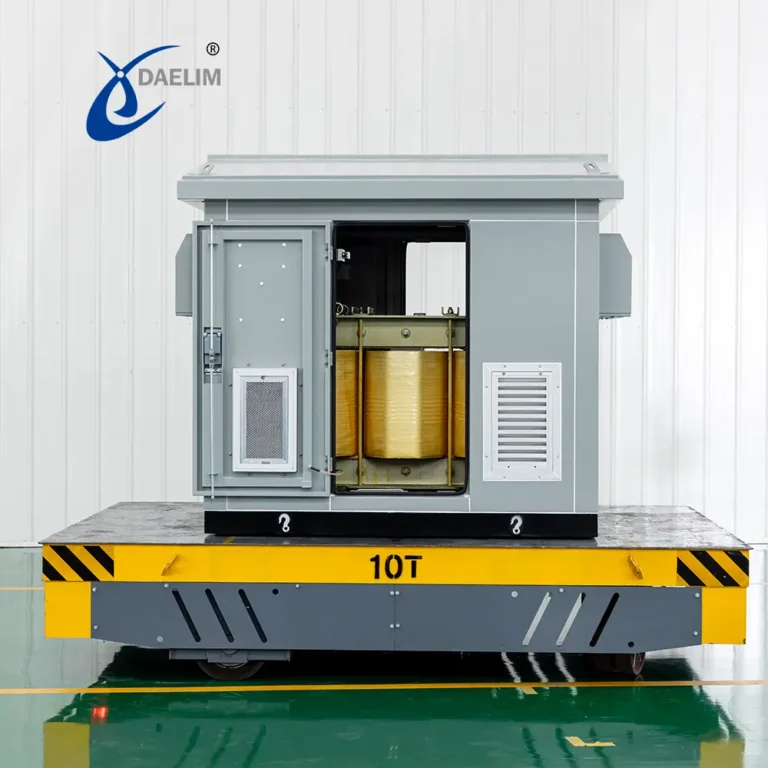

daelim transformer 1000kva dry type isolation transformer

Additional information

Primary Voltage Ratings: 480 V

Secondary Voltage Ratings: 480 V

TYPE: VPE

Standards: IEEE C57.12.00 & IEEE C57.12.01

Application: Microgrid

Power Rating: 1000 kVA/1 MVA

Cooling Type: AN

In June 2026, Daelim Transformer supplied a custom batch of 72 units of 1000 kVA VPE-type dry-type transformers to an integrated energy service provider in Florida, USA, specializing in microgrid and distributed energy solutions. These transformers are primarily deployed in local microgrids to provide galvanic isolation. They help block DC components and high-order harmonics generated by photovoltaic inverters or battery energy storage systems (BESS), reducing their propagation through the electrical system. In addition, the Dd0 vector group helps prevent circulating currents and provides electrical isolation between the primary and secondary sides, helping to manage ground potential differences and maintain power quality and operational safety for microgrid busbars and distributed energy systems.

Rated capacity	1000kVA
Frequency	60Hz
Nominal voltage(NSEG 8.E.n.75)	0.48kV
Nominal voltage(NSEG 8.E.n.76)	0.48kV
H.V & L.V BIL	10kV
N° phases	3 phase
Core type	Cold-rolled SI-ORIENT-CORE
Winding construction	Epoxy resin pouting-in type
Winding material	Copper/Copper
Connection type	Dd0
Cooling type	AN
Average temperature rise of winding at rated current（F）	150º C
Insulation level	220º C
Impedance	8.47%
Sound level	64 dB
Routine Tests (ANSI C.57.12.90)	IEEE C57.12.90

Contact Daelim Transformer for special requirements

Raw material	stainless steel
Dimension (mm)	1700×1400×1700
Protection level	NEMA 3R
Colour	ANSI 61
Weight	290kg

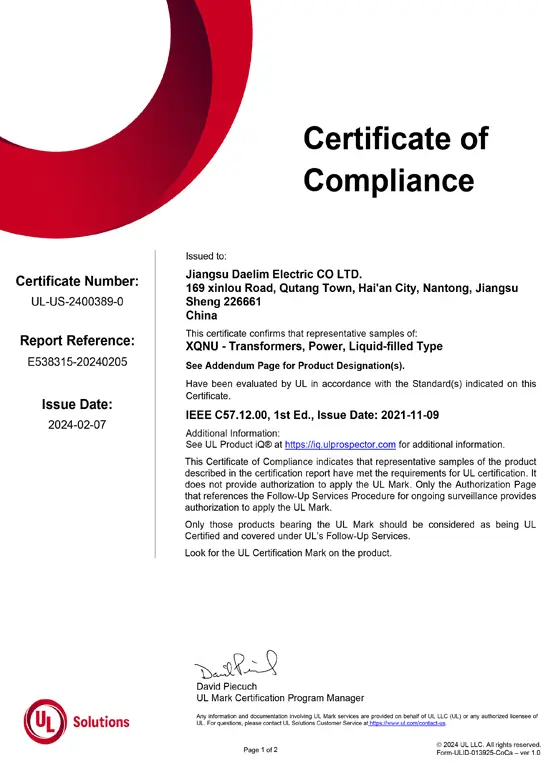

Daelim Transformer Certificates

Key Features

NEMA 3R Enclosure with Space Heaters

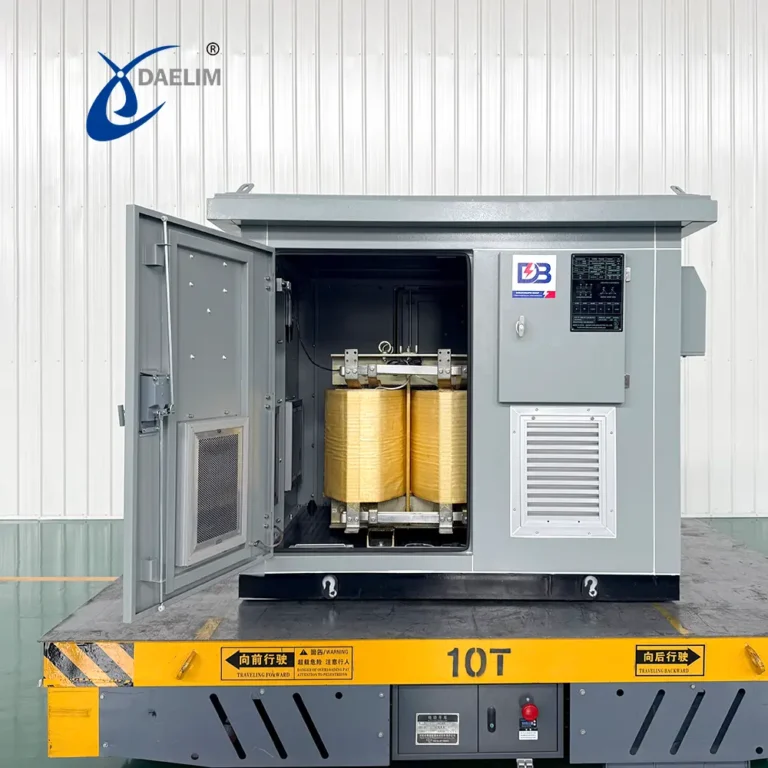

This Daelim Transformer 1000 kVA dry-type transformer features a NEMA 3R stainless steel enclosure suitable for outdoor installation and designed to protect against rain, snow, and ice. It is equipped with internal anti-condensation heaters that operate in conjunction with a thermostat or humidistat. These heaters warm the air inside the enclosure in low-temperature or high-humidity conditions, helping to prevent condensation during periods of significant diurnal temperature fluctuations. This helps protect internal electrical components, terminals, and control equipment from moisture and condensation, supporting reliable operation.

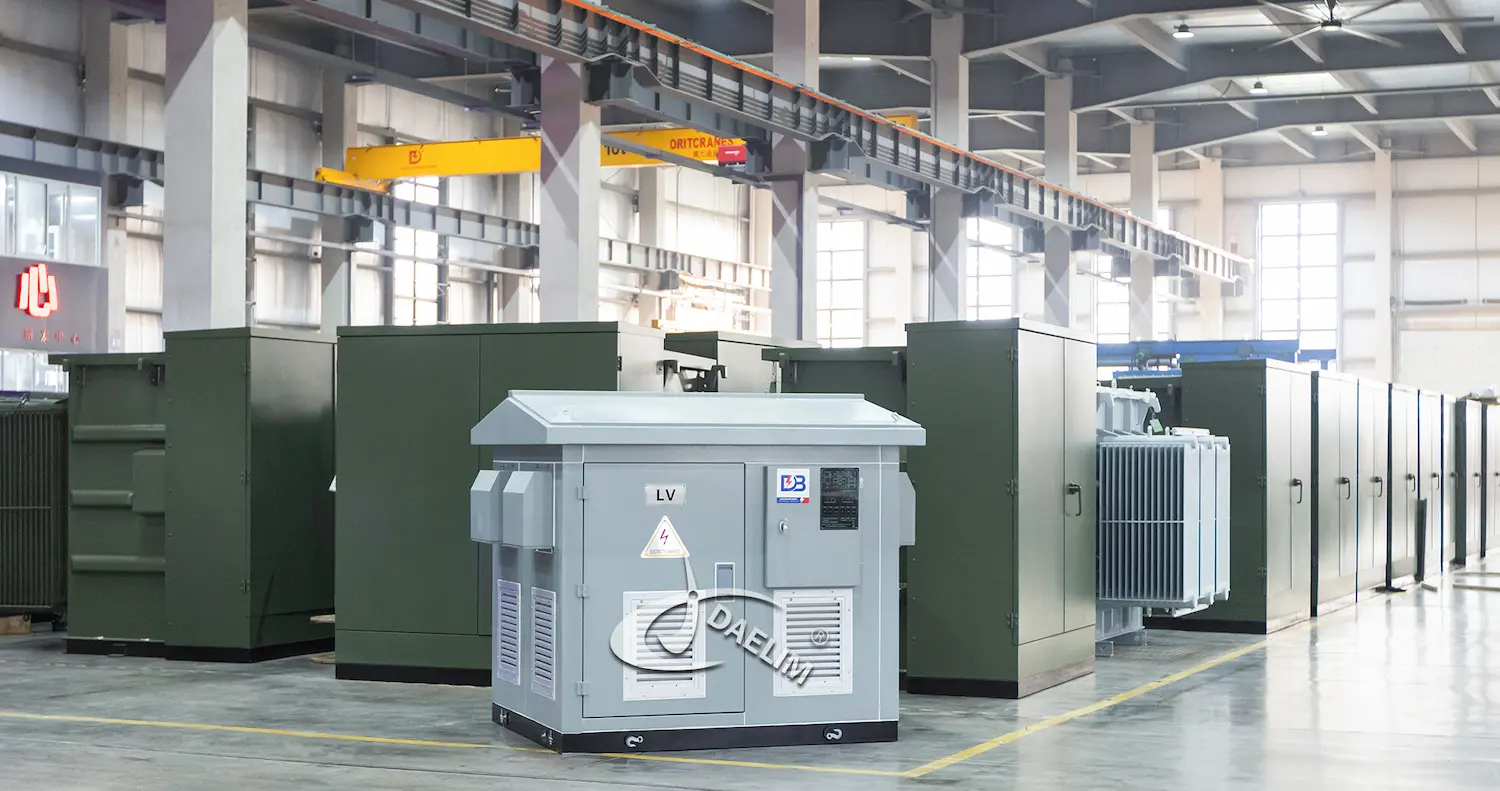

1000 kVA Dry Isolation Transformer in the factory

High Efficiency

With an energy efficiency of 99.28%, this transformer meets and exceeds applicable DOE efficiency requirements.

Applications

This batch of 1000 kVA dry-type transformers is used in microgrid projects at altitudes of up to 1,500 meters.

FAQ

What are the dimensions of a 1000 kVA dry-type transformer?

The 1000 kVA dry-type transformer designed and manufactured by Daelim Transformer has the following dimensions:

Transformer body:4 in (L) × 31.9 in (D) × 39 in (H)
Transformer enclosure:8 in (L) × 55.1 in (D) × 66.9 in (H)

What is the warranty for this transformer?

Daelim Transformer’s1000 kVA dry-type isolation transformer comes with a 24-month warranty. We can also provide a longer warranty based on your requirements and project specifications, such as 5 years.

Does this transformer have UL certification?

Yes, this 1000kVA dry transformer is UL listed and is supplied with a UL-listed nameplate. Contact us to request the UL listing information and certificate.
