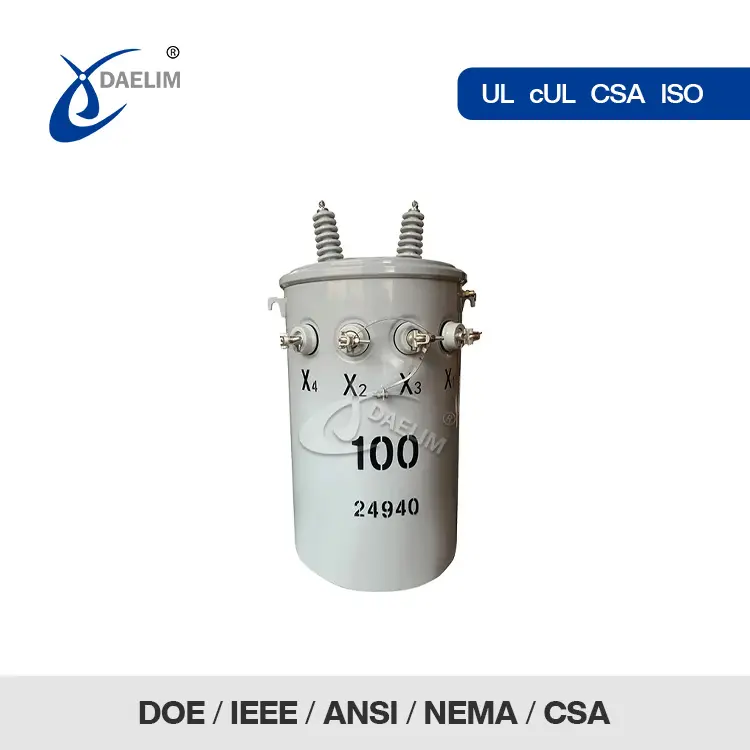

100 kVA Single Phase Pole Mounted Transformer
- Primary Voltage Ratings: 13.8 kV;12.47kV;2.4;7.2kV;14.4kV;24.94kV;34.5kV;27.6kV, 14.4*16kV,16*27.6kV, 2.4*7.2kV,ect
- Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277V;347V
- H.V. TAP RANGE: 2280-36225V
- CONNECTION TYPE: Ii0/Ii6
- TYPE: Conventional/CSP
- BIL: 30-150kV
- Standards: IEEE/ANSI/CSA/IEC/DOE
- Application: Distribution,Ultilities
- Power Rating: 100 kVA
Daelim Transformer is a reputable manufacturer known for producing high-quality transformers that adhere to the American National Standards Institute (ANSI/IEEE) and the Canadian Standards Association (CSA) guidelines. Among their offerings is the reliable 100 kVA single-phase pole-mounted transformer, designed to meet the DOE 2016 and CSA C802.1 efficiency standards.The pole-mounted transformer is available in both additive and subtractive polarity options, providing flexibility for different applications. It operates within a voltage range of 2.4kV to 34.5kV, catering to various power distribution requirements. Additionally, Daelim Transformer offers the choice between CSA and conventional types for the 100 kVA single-phase transformer, ensuring that customers can find the optimal solution for their specific needs.
Quote Now
100 kVA 24.94 kV Pole Mounted Transformer
The D-100-24.94/0.277-0.48Y is 100 kVA single-phase pole-mounted transformer designed to meet the Std IEEE C57.12.20 and energy efficiency standards of Std ANSI C57.12.
The D-100-24.94/0.277-0.48Y with a high voltage rating of 24940V in delta configuration and a low voltage rating of 277/480YV. Equipped with two high-voltage bushings and two low-voltage bushings, along with a low-pressure tank grounding, these transformers ensure secure and efficient operation.
Customers can benefit from enhanced flexibility with the 5-position tap changer on the HV side, which allows for adjustments in voltage levels. The high voltage offers five gears: 23695V, 24318V, 24940V, 25564V, and 26187V, making it suitable for diverse power distribution applications.
The D-100-24.94/0.277-0.48Y transformers have been ordered by an American customer in a batch of 12 sets of 100 kVA transformers. Each transformer undergoes rigorous routine testing, ensuring compliance with the ANSI C57.12.20 standard, and guaranteeing that customers receive the transformer of unmatched quality and reliability.
Send Inquiry Now100 kVA 14.4kV Pole Mounted Transformer
D-100-14.4/240-480, is the CSA Std 100 kVA single-phase pole-mounted transformer designed and manufactured by Daelim Transformer. This transformer boasts exceptional performance and adheres to the Canadian Standards Association (CSA) standards, ensuring top-notch quality and reliability.
The primary voltage of the transformer is 24940GrdY/14400V, while the secondary voltage is 240/480V. Its unique design includes one bushing for high voltage, with an impressive Basic Insulation Level (BIL) of 125kV, ensuring robust insulation performance.
To further enhance versatility and applications, the D-100-14.4/240-480 features four bushings for low pressure, with the low-pressure tank grounded for added safety. This design allows for seamless integration and compatibility when three of these transformers are combined, they can deliver a reliable three-phase voltage of 24.94kV, making it an ideal choice for projects that require higher voltage outputs.
Learn more about Pole Mounted Transformer
Get Price
100 kVA Pole Mounted Transformer Specifications
The detailed 100 kVA pole mounted transformer specifications are shown in the table below:
| 100kva pole mounted transformer specifications | |||
| Energy efficiency | CSA C802.1 | Polarity | Additive |
| Std | CSA C2.1 | HV/LV Winding | Aluminium |
| Power rating | 100 kVA | No load loss | 223W |
| HV Voltage | 24940GrdY/14400V | On load loss | 1105W |
| LV Voltage | 240/480V | Frequency | 60HZ |
| HV BIL | 125kV | Vectorgroup | Ii6 |
| LV BIL | 30kV | Color | Grey |
| Length | 730mm | Oil weight | 228L |
| Width | 890mm | Total weight | 575kg |
| Height | 1110mm | Impedance | 2.30% |
| Insulating liquid | Minera oil 45# NO PCB | Cooling Method | ONAN |
100kVA 14.4*16kV Pole Mounted Transformer
D-100-14.4-16/347-600Y, the dual high-voltage pole-mounted transformer designed by Daelim Transformer. This transformer features a unique dual voltage switch, offering seamless switching between 14.4 kV and 16 kV, providing flexibility to adapt to different power distribution requirements.
For enhanced safety and reliability, the high-voltage terminal is tank-grounded, ensuring stable operation in various conditions. Whether for commercial, industrial, or utility use, this transformer guarantees a dependable and efficient power supply, meeting the needs of modern power distribution networks.
Send Inquiry Now
100 kVA 14.4*16kV Pole Mounted Transformer Specification
The following table is the detailed 100kVA transformer specification:
| 100 kVA Pole Mounted Transformer Specifications | |||
| Energy efficiency | CSA C802.1 | HV/LV Winding | Aluminium |
| Std | CSA C2.1 | No load loss | 253w |
| Power rating | 100 kVA | On load loss | 1252w |
| HV Voltage | 16(27.6)kV/14.4(24.94)kV | Frequency | 60Hz |
| LV Voltage | 347/600Y V | Vectorgroup | Ii6 |
| HV BIL | 125kV | Color | Grey |
| LV BIL | 30kV | Tank & Accesories | 410kg |
| Length | 720mm | Oil weight | 165kg |
| Width | 940mm | Total weight | 660kg |
| Height | 1250mm | Impedance | 2.50% |
| Polarity | Additive | Cooling Method | ONAN |
Daelim 100 kVA Pole Mounted Transformer
100 kVA 24.9kV Pole Mounted Transformer
100 kVA 14.4kV Pole Mounted Transformer
100 kVA 24.9kV Pole Mounted Transformer
