Single Phase Pole Mounted Transformer For Guyana
In August 2023, Daelim Transformer completed production and Factory Acceptance Testing (FAT) for a batch of single-phase pole-mounted transformers. These transformers are destined for a prominent distributor in Guyana. The customized order comprises 44 units of 1 PH pole-mounted transformers, with 32 units of 50 kVA, 6 units of 100 kVA, and 6 units of 167 kVA. All adhere to traditional design principles, featuring dual high-pressure bushings. The standard manufacturing and testing procedures follow IEEE Std C57, with the specified type as Conventional.
Contact Daelim TransformerKey Features
- Efficiency and Reliability: Daelim Transformer's single-phase pole-mounted transformers exhibit high efficiency, ensuring safety, reliability, and an extended life cycle.
- Environmentally Considerate Design: Thoughtful design considering environmental impact, installation nuances, and maintenance requirements.
- Versatile Application: Tailored for above-ground distribution line systems in rural, remote, and sparsely populated areas, with the flexibility of outdoor installation on utility poles via hanger brackets.
- Dual High-Voltage Bushing Design: Facilitating connection to a three-phase grid system, delivering single-phase low-voltage power for indoor distribution.
- Pole-Mounted Installation: Featuring hanger brackets for secure outdoor installation on utility poles.
- Bushings: Two porcelain high-voltage bushings atop the oil tank, complemented by three low-voltage bushings on the tank's side.
- Optimized Winding Composition: High-voltage windings crafted from copper, and low-voltage windings from aluminum, ensuring a harmonious blend of efficiency and cost-effectiveness.
- Working Temperature: Operates seamlessly within a temperature range of -40°C to +40°C, with a temperature rise limited to 65°C.
- Insulation Prowess: Boasting a Class A insulation level and utilizing PCB-free refined mineral oil for environmental friendliness.
Learn more about Single Phase Pole Mounted Transformer

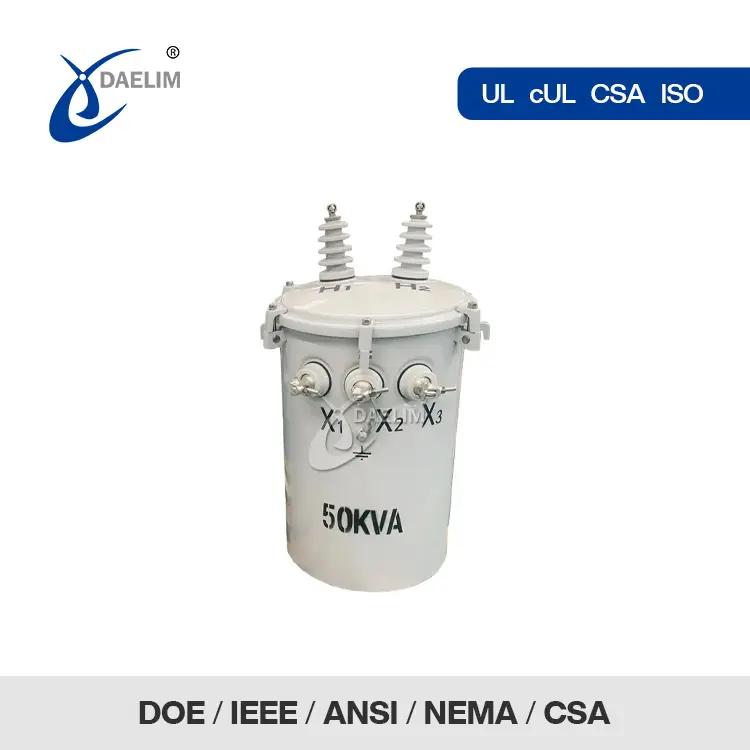

32 Units 50 kVA Single Phase Pole Mounted Transformer
Specifications
- Rated Capacity: 50 kVA
- Primary Voltage: 13.8 kV
- Secondary Voltage: 0.24/0.12 kV
- Frequency: 60Hz
- Polarity: Negative
- Impedance: 2.4%
- Tap Voltages HV: ±2x2.5%
- Number Bushing HV: 2
- Number Bushing LV: 3
- Winding Temperature Rise: 65℃
- Cooling Method: ONAN
- Colors Tank: ANSI 70 (gray)
- Working-Temperature: -40°C to +40°C
Dimensions & Weight
- Height: 1035mm
- Depth: 675mm
- Width: 635mm
- Oil Weight: 62kg
- Total Weight: 395kg
View other 50kVA Pole Mounted Transformer information

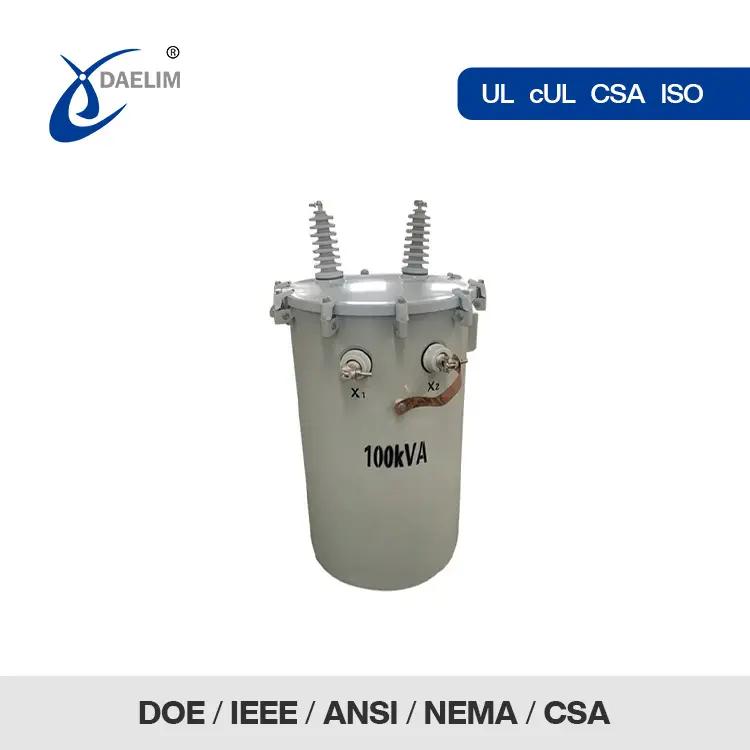

6 Units 100 kVA Single Phase Pole Mounted Transformer
Specifications
- Rated Capacity: 100 kVA
- Primary Voltage: 13.8 kV
- Secondary Voltage: 0.24/0.12 kV
- Frequency: 60Hz
- Polarity: Negative
- Impedance: 2.4%
- Tap Voltages HV: ±2x2.5%
- Number Bushing HV: 2
- Number Bushing LV: 3
- Winding Temperature Rise: 65℃
- Cooling Method: ONAN
- Colors Tank: ANSI 70 (gray)
- Working-Temperature: -40°C to +40°C
Dimensions & Weight
- Height: 1300mm
- Depth: 850mm
- Width: 750mm
- Oil Weight: 95kg
- Total Weight: 530kg
View other 100kVA Pole Mounted Transformer information

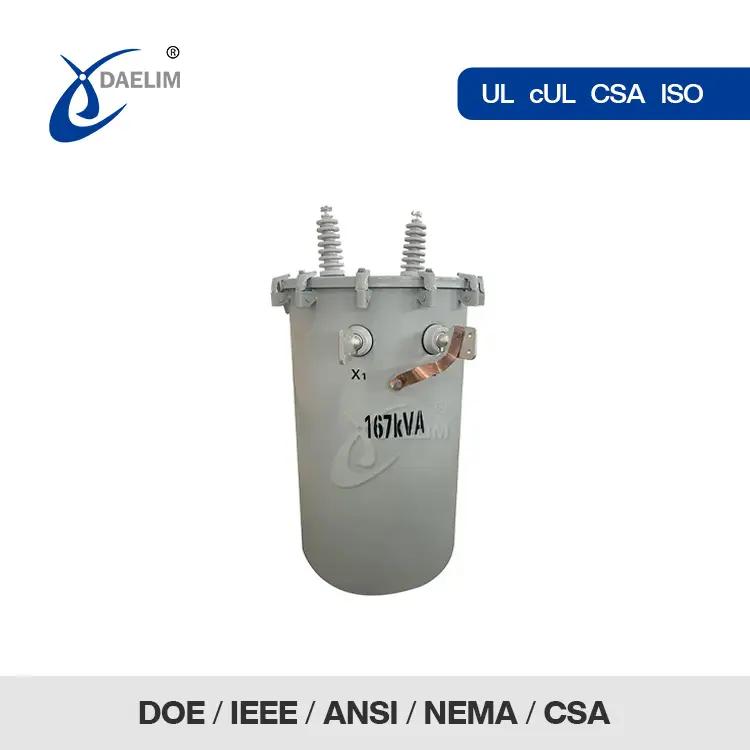

6 Units 167 kVA Single Phase Pole Mounted Transformer
Specifications
- Rated Capacity: 167 kVA
- Primary Voltage: 13.8 kV
- Secondary Voltage: 0.24/0.12 kV
- Phase: Single phase
- Frequency: 60Hz
- Polarity: Negative
- Impedance: 2.4%
- Tap Voltages HV: ±2x2.5%
- Number Bushing HV: 2
- Number Bushing LV: 3
- Winding Temperature Rise: 65℃
- Cooling: ONAN
- Material Core: Silicon steel
- Colors Tank: ANSI 70 (gray)
- Working-Temperature: -40°C to +40°C
Dimensions & Weight
- Height: 1400mm
- Depth: 900mm
- Width: 800mm
- Oil Weight: 140kg
- Total Weight: 700kg
View other 167kVA Pole Mounted Transformer information
Daelim Transformer Advantage: Why Choose Us?
- Tailored Solutions: Customized to meet project and technical specifications.
- International Compliance: Adheres to global standards and local regulations, with authoritative certifications such as UL/cUL, CSA, and CESI.
- Safety, Reliability, and Quality: Providing secure, dependable, and high-quality transformer products. More than a 24-month warranty.
Daelim Transformer's single-phase pole-mounted transformers are engineered to redefine power solutions, offering a harmonious balance of efficiency, safety, and environmental consciousness. This achievement underscores Daelim Transformer's commitment to delivering tailored and sustainable solutions, propelling the power distribution landscape towards a brighter and more efficient future. Daelim Transformer stands as your reliable partner, delivering precision-engineered transformers that redefine energy efficiency and reliability. Elevate your projects with Daelim Transformer—the trusted name in transformative energy solutions!
