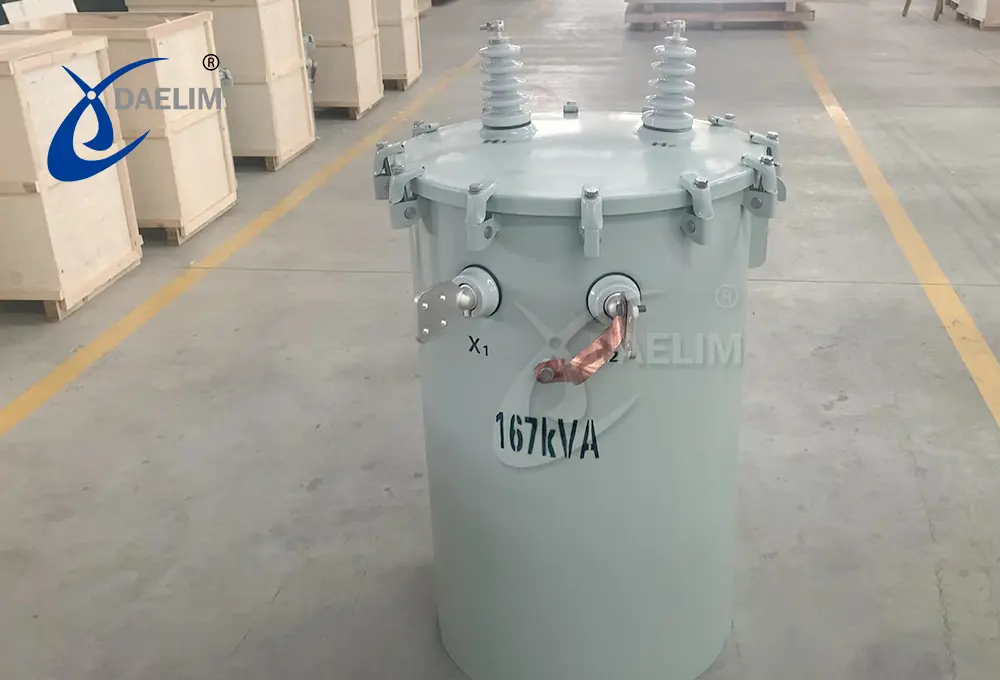

167 kVA Single Phase Pole Mounted Transformer
- Primary Voltage Ratings: 13.8 kV;12.47kV;2.4;7.2kV;14.4kV;24.94kV;34.5kV;27.6kV, 14.4*16kV,16*27.6kV, 2.4*7.2kV,ect
- Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277V;347V
- H.V. TAP RANGE: 2280-36225V
- CONNECTION TYPE: Ii0/Ii6
- TYPE: Conventional/CSP
- BIL: 30-150kV
- Standards: IEEE/ANSI/CSA/IEC/DOE
- Application: Distribution,Ultilities
- Power Rating: 167 kVA
Dealim Transformer has a full range of 167 kVA single phase pole-mounted transformers, fully compliant with IEEE, ANIS, CSA and DOE Std. The high voltage offerings span from 2.4 kV to 34.5 kV, accompanied by low voltage options including 277/480Y, 480/240, 480, 347, and 600 V configurations. Notably, our selection features the distinctive dual high voltage series. Benefit from our ready-to-ship inventory of 167 kVA pole-mounted transformers, guaranteeing swift delivery. Elevate your power solutions with Dealim Transformer's excellence.
Quote Now
Daelim Transformer stands as a distinguished manufacturer, adept at tailoring pole-mounted transformers to meet your unique specifications. Our offerings encompass a diverse range of 167 kVA transformers. In the following sections, we present an in-depth overview of four distinct 167 kVA models, each catering to varying voltage requirements. These exemplary units, recently dispatched to the US and Canadian markets, are accompanied by authentic photographs and videos, providing an exclusive glimpse into our capabilities.
Learn more about the 167 kVA Transformer
167 kVA 12.47 kV Pole Mounted Transformerr
The D-167-12.47/0.277-0.48Y is a 167 kVA overhead pole-mounted transformer manufactured by Daelim Transformer.
This transformer is built according to IEEE C57.12.20 standards and adheres to ANSI C57.12 energy efficiency guidelines. It falls within the category of distribution transformers and finds extensive usage across industries, village power distribution systems, and public utilities.
The design of transformers of this type is optimized for overhead pole mounting.
Learn more about Pole Mounted Transformers.
Contact Daelim Transformer167 kVA 12.47 kV Pole Mounted Transformer Features
Capacity: 167 kVA Primary Voltage: 12.47 kV delta
Secondary Voltage: 277/480Y V (single phase)
High Voltage: Equipped with two porcelain bushings
Low Voltage: Features two spade bushings with a 4-hole terminal arrangement
Winding: Aluminum winding
Cooling System: The transformer incorporates a self-cooling mechanism(ONAN).
Insulation Fluid: The preferred insulating fluid is mineral oil, which the customer requires. Daelim Transformer can also provide FR3 oil if needed, along with other brands of vegetable oil.
The D-167-12.47/0.277-0.48Y excels in insulation safety, delivering an extensive service life, remarkable cost-efficiency, and a host of other notable advantages.
Send Inquiry Now
167 kVA 24.94 kV Transformer
The 167kVA 24.94 kV pole-mounted transformer specification is below:
| 24.94kV 167kVA pole-mounted transformer specifications | |||||
| Energy efficiency | ANSI C57.12 | HV/LV Winding | Aluminium | Vectorgroup | Ii6 |
| Std | IEEE C57.12.20 | Length | 780mm | Color | ANSI 60 Grey |
| Power rating | 167 kVA | Width | 1020mm | Tank & Accessories | 555kg |
| HV Voltage | 24.94 kV Delta | Height | 1360mm | Oil weight | 190kg |
| LV Voltage | 277/480YV | Polarity | Additive | Total weight | 830kg |
| HV BIL | 125kV | No load loss | 272w | Impedance | 3.00% |
| LV BIL | 30kV | On load loss | 1290w | HV/LV Winding | Aluminium |
167 kVA Transformer Test Report
1． Product Specification
- Power Rating: 167kVA
- Rated Voltage：24.94 /0.277kV
- Rated current：6.70/602.9A
- Rated Frequency：60 Hz
- Number of Phases：1 phase
- Tap Range：24.94(±2×2.5%)/0.277kV
- Cooling Method： ONAN
- Insulation Class： A
- Insulation Level：LI 125 AC50 /LI AC 10
2． Test Standard：
- ANSI C57. 12.20
3． Test Item and Result
- Voltage Ratio Measurement and Connection Group test
- Winding Resistance Test
- Insulation Resistance Measurement
- AC power withstand voltage Test
- No load loss and no-load current
- Induction Pressure Test
- Impedance(%) and load loss test
- Seal Test
3． Test Item and Result
The transformer is proven to meet the stipulations of ANSI C57. 12.20
167 kVA 13.2 kV Pole Mounted Transformer
The 167kVA 13.2kV single phase pole mounted transformer specifications:
Rated Power： 167 kVA
Rated Voltage： 13.2/0.48 kV
Rated current： 12.7347.9 A
Rated Frequency： 60 Hz
Number of Phases： 1 phase
Tap Range： (13.2±2)×2.5% /0.48 kV
Cooling Method： ONAN
Insulation Class： A
Insulation Level： LI 125 AC42 / LI AC10
Test Standard：ANSI C57.12
Built Standard: IEEE C57.12.20
Send Inquiry Now167 kVA 14.4 kV Pole Mounted Transformer
The 167 kVA 14.4 kV pole mounted transformer specification as the below table:
| 14.4kV 167kVA pole mounted transformer specifications | |||
| Energy efficiency | CSA C802.1 | HV/LV Winding | Aluminium |
| Std | CSA C2.1 | No load loss | 276w |
| Power rating | 167 kVA | On load loss | 1380w |
| HV Voltage | 14.4kV | Frequency | 60Hz |
| LV Voltage | 347V | Vectorgroup | Ii0 |
| HV BIL | 125kV | Color | ANSI 60 Grey |
| LV BIL | 30kV | Tank & Accesories | 625kg |
| Length | 710mm | Oil weight | 200L |
| Width | 880mm | Total weight | 900kg |
| Height | 1450mm | Impedance | 2.40% |
| Polarity | Subtractive | HV/LV Winding | Aluminium |
167 kVA Pole Mounted Transformer Drawings
167 kVA 2.4kV Transformer Drawing
167 kVA 7.2kV Transformer Drawing
167 kVA 12.47kV Transformer Drawing
167 kVA 14.4kV 347V Transformer Drawing
167kVA 14.4 kV Transformer Drawing
167 kVA 13.2kV Transformer Drawing
