250 kVA Single Phase Pole Mounted Transformer
- Primary Voltage Ratings: 13.8 kV;12.47kV;2.4;7.2kV;14.4kV;24.94kV;34.5kV;27.6kV, 14.4*16kV,16*27.6kV, 2.4*7.2kV,ect
- Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277V;347V
- H.V. TAP RANGE: up to 34.5kV
- CONNECTION TYPE: Ii0/Ii6
- TYPE: Conventional/CSP
- BIL: 30-150kV
- Standards: IEEE/ANSI/CSA/IEC/DOE
- Application: Distribution,Ultilities
- Power Rating: 250 kVA

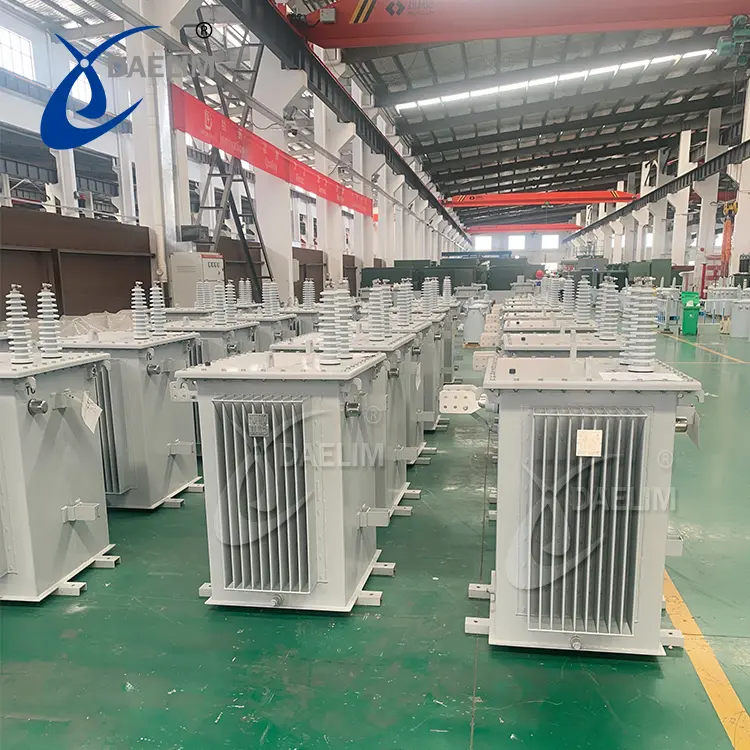

The 250 kVA single-phase pole-mounted transformer crafted by Daelim Transformer boasts a square design, enhanced with corrugated fins meticulously incorporated to facilitate superior heat dissipation. This design ensures optimal performance and prolonged operational efficiency. Furthermore, The 250 kVA single-phase pole mounted transformer fully complies with ANSI, IEEE, CSA, and DOE standards.
Quote Now
Contact Daelim Transformer for special requirements
250 kVA Single Phase Pole Mounted Transformer
250 kVA 24.94 kV Pole Mounted Transformerr
250kVA Single Phase Pole Mounted Transformer Specification
Rated Power： 250kVA
Rated Voltage： 24.94 /0.277kV
Rated current： 10.02/902.5A
Rated Frequency： 60 Hz
Number of Phases： 1 phase
Tap Range： 24.94(±2×2.5%)/0.277kV
Cooling Method： ONAN
Insulation Class： A
Insulation Level： LI 150 AC50 /LI AC 10
Built Standard: IEEE C57.12.20
Test Standard：ANSI C57.12.20
Learn more about Pole Mounted Transformers.
Contact Daelim Transformer250 kVA 12.47 kV Pole Mounted Transformer
250 kVA Single Phase Pole Mounted Tranasformer Specification
Rated Power： 250 kVA
Rated Voltage： 12.47/0.277kV
Polarity： Additive
Rated Frequency： 60 Hz
Number of Phases： 1 phase
Tap Range： 12.47(±2×2.5%)/0.277kV
Cooling Method： ONAN
Insulation Class： A
Impedance: 3.5%
BIL： 95/30kC
Built Standard: IEEE C57.12.20
Test Standard：ANSI C57.12.20
HV/LV Winding: Aluminium
Send Inquiry Now
250 kVA Single Phase Pole Mounted Transformer
250 kVA Transformer Detail
250 kVA Pole Mounted Transformers
250kVA Transformer Package
