| Primary Voltage Ratings | 11 kV |
|---|---|
| Secondary Voltage Ratings | 433V |
| H.V. TAP RANGE | 10175V-11275V |
| CONNECTION TYPE | Dyn11 |
| D_TYPE | substation transformer |
| BIL | 30, 90 |
| Standards | AS, IEC 60076, NZS 60076 |
| Application | Skid mounted substation |
| Power Rating | 1000 kVA (1 MVA) |
Primary Voltage Ratings: 11 kV
Secondary Voltage Ratings: 433V
H.V. TAP RANGE: 10175V-11275V
CONNECTION TYPE: Dyn11
TYPE: substation transformer
BIL: 90/30
Standards: AS/NZS 60076, IEC 60076
Application: Skid mounted substation
Power Rating: 1000 kVA (1 MVA)
The 1000kVA Skid-mounted Transformer is designed to meet AS/NZS 60076 and IEC 60076 standards for the Australian market. Ideal for skid-mounted substations, it ensures compliance, reliability, and efficiency in a compact package. Daelim Transformer is a professional manufacturer of transformers with extensive project experience in Australia, New Zealand, and other countries. We have offered numerous transformer services for mines, power stations, industrial, and commercial sectors in Australia and New Zealand. Our services encompass distribution transformers below 35kV, as well as HV power transformers exceeding 66kV.
| Standards | AS/NZS 60076 | Width(mm) | 2211 |
| Cooling Method | ONAN | Length(mm) | 1420 |
| Power rating | 1000 kVA(1MVA) | Height(mm) | 1470 |
| Material | ALUMINIUM | Oil weight | 660kg |
| No. OF TAP POSITION | 5 | Total weight | 2750kg |
| Vector Group | Dyn11 | On load loss | 11500W |
| HV | 11000V | No load loss | 1150W |
| LV | 433V | Efficiency | 99.19% |
| Color | ANSI Grey70# | Impedance | 5.75% |
Contact Daelim Transformer for special requirements
With a transformer rating of 1000 kVA, the SL-1000kVA-11000V-433V skid substation transformer is a three-phase unit with a primary voltage of 11000V and a secondary voltage of 433V.

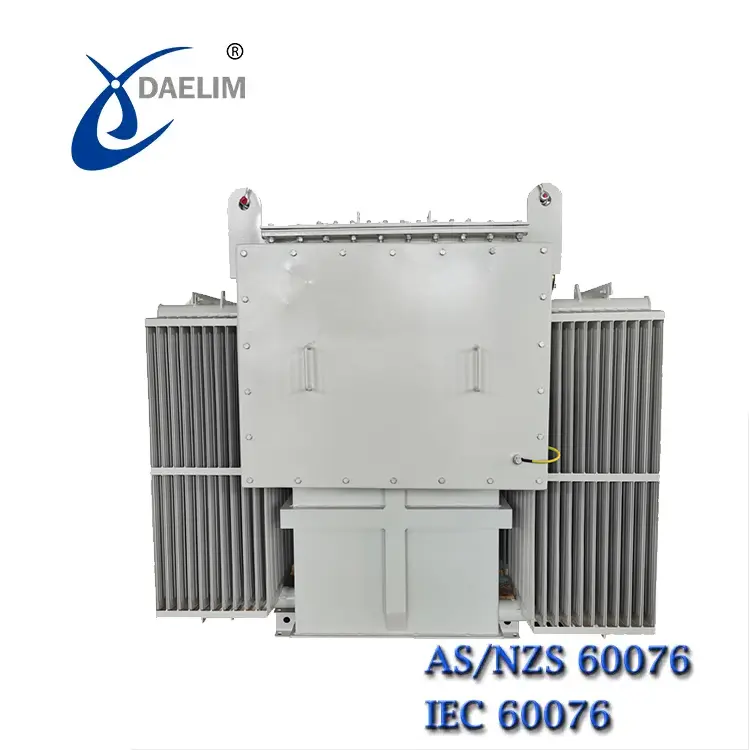

The image on the left showcases a 1000kVA(1MVA) transformer that has been acquired by an Australian customer for a skid-mounted substation. Manufactured by Daelim Transformer, this transformer exhibits meticulous design, featuring side outlet connections for both high voltage and low voltage. This unique design ensures a seamless integration with high voltage cabinets and other related equipment. Notably, this special design feature significantly enhances the convenience and ease of installation, making the entire process highly efficient and user-friendly. By selecting this transformer, the customer has prioritized functionality and practicality, resulting in an optimized solution tailored to their specific requirements.
| 1000 kVA Skid Mounted Transformer Accessories | |
| HV BUSHING | NAMEPLATE |
| LV BUSHING | MARSHALLING BOX |
| RADIATORS | L.V CABLE BOX |
| LIFTING EYE | H.V CABLE BOX |
| TAP CHANGER | HANDHOLE |
| THERMOMETER | BASE WELDED TO TANK |
| TANK AND COVER ASSEMBLY | |
| OIL FILL VALVE | GROUND PAD ON TANK WALL |
| DRAIN VALVE WITH SAMPLING DEVICE | LIFTING HOOK |
| PRESSURE RELIEF DEVICE | LIQUID TEMPERATURE INDICATOR |
The image on the left depicts the outline drawing of a 1000kVA（(1MVA) transformer meticulously designed by Daelim Transformer for an Australian customer. The drawing includes precise dimensions for the transformer’s length, width, and height, as well as the marked locations of accessories. Additionally, it provides essential information such as the positions of high and low-voltage incoming lines, terminal spacing, and other pertinent details. This comprehensive and detailed outline drawing facilitates a smooth installation and seamless utilization of the transformer for the customer. By providing all the necessary information in a clear and organized manner, Daelim Transformer ensures that its customers can effortlessly install and operate the transformer upon receiving it.
