333 kVA Single Phase Pole Mounted Transformer
- Primary Voltage Ratings: 13.8 kV;12.47kV;2.4;7.2kV;14.4kV;24.94kV;34.5kV;27.6kV, 14.4*16kV,16*27.6kV, 2.4*7.2kV,ect
- Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277V;347V
- H.V. TAP RANGE: up to 34.5kV
- CONNECTION TYPE: Ii0/Ii6
- TYPE: Conventional/CSP
- BIL: 30-150kV
- Standards: IEEE/ANSI/CSA/IEC/DOE
- Application: Distribution,Ultilities
- Power Rating: 333 kVA

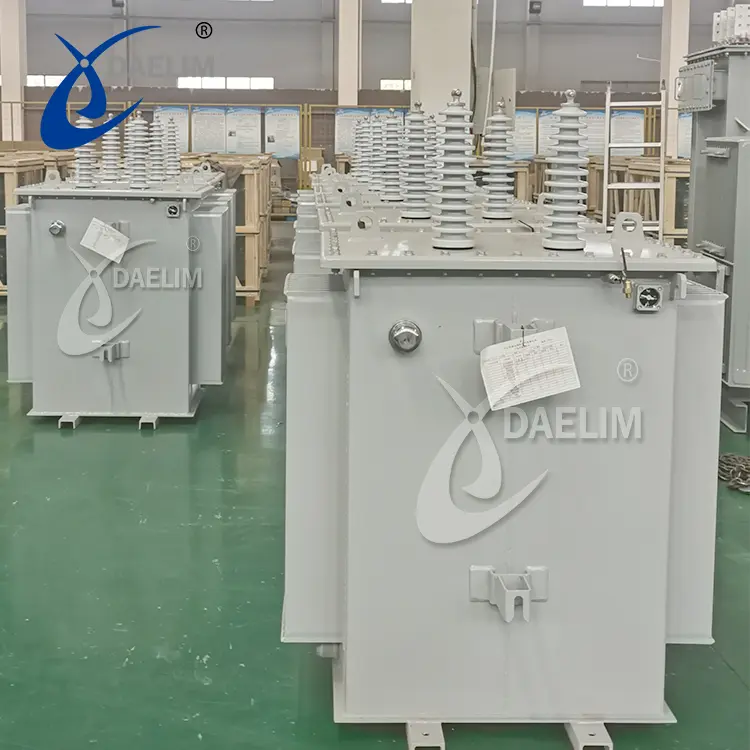

The 333 kVA single phase pole mounted transformer offered by Daelim Transformer is square. The cooling system offers a choice between ONAN (mineral oil insulating fluid) or the eco-friendly KNAN (vegetable oil insulating fluid), allowing for versatile performance tailored to specific needs. This robust 333 kVA pole-mounted transformer finds its prime utility in elevated power distribution systems, seamlessly installed atop overhead poles. The 333 kVA also complies with various international standards.
Quote Now
Contact Daelim Transformer for special requirements
333 kVA 24.94 kV Pole Mounted Transformerr
333 kVA Single Phase Pole Mounted Transformer Specification
Rated Power： 333 kVA
High Voltage： 24940Y/14400
Loe Voltage: 480/277V
Polarity： Subtractive
Rated Frequency： 60 Hz
Number of Phases： 1 phase
HV Tap Range： 12000-14400V
Cooling Method： KNAN
Impedance: 2.49%
BIL： 150/45kV
Built Standard: IEEE C57.12.20
Efficiency Standard: DOE 2016
Learn more about Pole Mounted Transformers.
Contact Daelim Transformer333 kVA 12.47 kV Pole Mounted Transformer
333 kVA Single Phase Pole Mounted Transformer Specification
Rated Power： 333kVA
High Voltage： 12.47kV
Loe Voltage: 277V
Polarity： Additive
Rated Frequency： 60 Hz
Number of Phases： 1 phase
Cooling Method： ONAN
Insulation Class： A
Impedance: 4%
BIL： 95/30kV
Built Standard: CSA C2.1
Efficiency Standard: CSA C802.1
