1,000+ Electrical Transformers (7.2–34.5 kV, 25–3000 kVA) — UL Evaluated, Certificate of Compliance Available — In Stock & Ready to Ship from Houston, CA & Florida. Contact Us Today!
Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2, 24.94, 26.25, 33 or others
Secondary Voltage Ratings: 208GrdY/120;416GrdY/240,480GrdY/277,/600GrdY/347,220y/127,480V,415v,600v or others
H.V. TAP RANGE: ±2×2.5% or others
CONNECTION TYPE: Dyn11/YNyn0 or others
TYPE: Loop feed/Radial feed
BIL: 30-150 kV
Standards: IEEE/ANSI, CSA/CAN, DOE
Application: BESS, Data center, Industry, Renewable energy, EV charging, Utility
Power Rating: 2000 kVA, 2 MVA
Certificate: UL, cUL, CSA, SGS

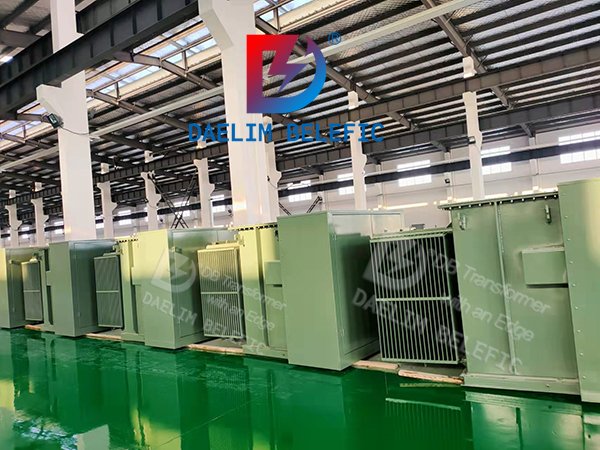

2000 kVA pad-mounted transformer meets ANSI, CSA, NEMA, IEEE, DOE, etc standards. Daelim 2000 kVA pad-mount transformers meet DOE efficiency values with UL listed.2000kva pad-mounted transformers according to the specific technical requirements, the iron core can be designed as a three-legged iron core or a five-legged iron core assembly structure.
| 2000 kVA Pad Mounted Transformer Specifications | |||
| Phase | Three phase | Std. | ANSI/IEEE Std C57 & DOE 2016 Std |
| Power rating | 2000kVA (2MVA) | Config | Dead front/loop feed |
| Mounting | Pad Mount | Frequency | 60Hz |
| HV Voltage | 24.94 kV Delta | Tap changer | 5-position |
| LV Voltage | 480 V | Fluid Capacity | 416 GAL |
| HV BIL | 125 kV | Total weight | 12125 LBS |
| LV BIL | 30 kV | No load loss | 1555 W |
| Vectorgroup | Dyn1 | On load loss | 13670 W |
| Cooling method | KNAN | Impedance | 5.50% |
| Winding Material | Aluminum | Paint Color | Munsell green |
| Insulation Fluid | Biodegradable vegetable oil | Capacity @ 65°C Temperature Rise | 2000 kVA |
| Enclosure Rating | NEMA 3R Weatherproof | Forced Air (Fans) | None |
You may enjoy: 2000 kVA Substation Transformer
Contact Daelim Transformer for special requirements
| 2000 kVA (2 MVA) Transformer Accessories | |||
| Name | Qty | Name | Qty |
| Lifting lug | 4 | Drip tray | 1 |
| Hinged door | 2 | Door handle | 1 |
| Name plate | 1 | Tap changer | 1 |
| Oil level gauge | 1 | ELSP fuse | 6 |
| Ground steel pads | 4 | Tap changer | 5-position |
| L.V bushing(10 hole) | 4 | Bay-O-net fuse | 3 |
| Pressure relief valve | 1 | Upper fill valve | 1 |
| Vacuum pressure gauge | 1 | Oil temperature gauge | 1 |
| Parking stand bracket | 8 | Four position loadbreak switch | 1 |
| Drain valve with sampler | 1 | HV bushing well | 6 |
The ZGSL-H-2000/24.94/0.48 pad-mounted transformer from Daelim Transformer serves a vital role within underground distribution systems. This specialized batch, comprising 6 sets, has been intricately crafted to meet the precise requirements of a discerning United States-based clientele. With a power rating of 2000 kVA, this transformer offers a dependable, secure, and highly efficient power distribution solution suitable for a diverse array of environments, encompassing industrial facilities, residential areas, and both indoor and outdoor settings. It stands out not only for its exceptional performance but also for its ease of installation and maintenance. Additionally, its use of biodegradable vegetable oil as an insulating fluid underscores a strong commitment to both environmental sustainability and economic viability.
This transformer is distinguished by its substantial power rating of 2000 kVA (2 MVA), with a high voltage configuration of 24.94 kV in a Delta arrangement and a low voltage output of 480V. It is thoughtfully engineered with a radial feed design, perfectly complementing dead-front systems. Notably, the transformer features a versatile 5-position tap changer, facilitating seamless voltage adjustments at 23693V, 24317V, 24940V, 25564V, and 26187V to cater to a wide range of voltage requirements.
The ZGSL-H-2000/24.94/0.48 model is equipped with aluminum windings and follows the Dyn1 connection group configuration. Its design includes a rectangular coil in conjunction with a three-legged iron core, showcasing its meticulous engineering and efficient construction.
Temperature Rise
With a temperature rise of 65°C, this 2000 kVA pad-mounted transformer operates at optimal efficiency, reliably delivering its full rated power of 2000 kVA (2 MVA). It adheres to the stringent efficiency standards set by the US Department of Energy (DOE), underscoring its commitment to energy efficiency and performance excellence.
Insulation Fluid
Utilizing a KNAN cooling class, this transformer employs an insulating fluid with a fire point exceeding 300°C, making use of environmentally conscious vegetable oil. This choice not only prioritizes safety but also underscores a commitment to eco-friendly practices.
Gauges
The transformer is outfitted with non-contact gauges for manual monitoring of essential parameters, including oil level, pressure, and temperature gauges. This meticulous approach guarantees precise and dependable performance assessment.
Protection Fuses
Fitted with 3 bayonet fuses, this transformer provides an automatic power supply cutoff mechanism in cases of circuit failure or excessive current, thereby ensuring robust protection against potential damage of the 2000 kVA transformer.
Package
The ZGSL-H-2000/24.94/0.48 2000 kVA pad-mounted transformer is meticulously packaged in a wooden crate, and securely fastened to a sturdy wooden pallet. Additional templates safeguard its sides and top during long-distance transportation, preventing any potential collisions. The packaging is labeled with essential information, including instructions regarding handling and moisture sensitivity.
Applications
Designed primarily for underground power distribution systems, the 2000 kVA pad-mounted transformer exhibits remarkable versatility and finds practical application in various settings, including industrial zones, residential areas, digital centers, and emerging new energy projects. Its reliability makes it an indispensable power distribution solution across a wide spectrum of sectors and industries.
The ZGSL-H-2000/33/0.24 is a meticulously engineered three-phase loop pad-mounted transformer developed by Daelim Transformer. With a substantial power rating of 2000 kVA (2 MVA), it features a primary voltage configuration of 3-phase 33Y/19.05 kV grounded Wye and a secondary voltage of 240GrdY/139V. Both the high voltage (H0) and low voltage (X0) are grounded for enhanced safety. This transformer boasts advanced features, including a versatile 5-position tap changer, 3 two-position load-break switches, 3 bayonet fuses, and 3 under-oil arresters, ensuring comprehensive protection. Its impedance value stands at 7.08%, and it adheres to the stringent efficiency standards outlined in DOE 2016. The UL certification underscores its commitment to quality and safety.
The ZGSL-H-2000/26.25(13.13)/0.415 stands as a robust three-phase loop pad-mounted transformer, thoughtfully supplied by Daelim Transformer. This specific order consists of eight units, all boasting an impressive 2 MVA power rating, procured by a valued Canadian customer. Among these, four are configured with YNyn0 connections, while the remaining four feature the Dyn1 configuration. These transformers are meticulously designed with a power rating of 2000 kVA and incorporate a dual high-voltage setup. Importantly, they adhere comprehensively to the exacting standards set forth by CSA, underscoring their dedication to meeting stringent design criteria.
The 2MVA transformer configured with the Dyn1 connection boasts a robust design, employing three-leg cores and high voltage configurations of 26500V and 13130V in Delta connection. On the low voltage side, it adopts a 415GrdY/240V Wye connection. Impressive efficiency is a hallmark, achieving an outstanding 99.37%, fully aligning with the stringent CAN/CSA 802.1 standard. High Voltage Basic Impulse Level (HV BIL) ratings stand at 150 kV and 95 kV, while the Low Voltage Basic Impulse Level (LV BIL) is rated at 30 kV.
This transformer operates under the ONAN cooling class and features an oil capacity of 2020L. It bears a total weight of 5900 kg and is equipped with two current-limiting fuses and 3 bayonet fuses. Additionally, it offers the convenience of a tap changer and a dual voltage switch.
In contrast, the 2MVA transformer configured with YNyn0 connections showcases a five-leg core design. Its high voltage configurations include 26250GRDY/15155V and 13130GRDY/7580V, adopting a Wye connection on the low voltage side (415GrdY/240V). This transformer is meticulously crafted in accordance with CSA C227.4 standards. Notably, its high voltage section offers an impressive array of five voltage regulation levels, including 24940V, 25595V, 26250V, 26905V, and 27560V, as well as 12.47V, 12800V, 13130V, 13460V, and 13785V. This flexibility allows for precise voltage adjustment tailored to specific operational requirements.
The ZGS-Z-2000-13.8-0.6 represents yet another specialized pad-mounted transformer expertly crafted by Daelim Transformer. With a robust capacity of 2000 kVA, it operates at a primary voltage of 13800V in Delta configuration, delivering a secondary voltage of 600GrdY/347V in a Wye connection. Notably, this transformer falls into the category of live-front units, featuring a high voltage integrated bushing with 2 holes, and on the low voltage side, it incorporates a spade bushing with 6 holes.
This particular pad-mounted transformer was custom-tailored by Daelim Transformer to meet the specific requirements of a Canadian customer. In response to the customer’s request for high and low-voltage cable entry from the top of the front cabin, the transformer’s design underwent notable adaptations, including:
The type of 2000 kVA pad mounted transformer: loop feed and radial feed transformer meet U.S. DOE efficiency value.
So whether you are from the US, Canada, Mexico, or Panama, Daelim can meet your transformer design requirements.
The following table shows the standard primary voltage of 2000kva transformers. If you need other levels of voltage or special requirements, Daelim’s technical team can also customize the design.
| Standard Primary | ||||
| Voltage Rating | Minimum BIL | Voltage Rating | Minimum BIL | |
| Delta or Wye | Ground Wye | |||
| 2400 V | 45 kV | 4160GrdY/2400 | 65 kV | |
| 4160 V | 60 kV | 12470GrdY/7200 | 95 kV | |
| 4800 V | 60 kV | 13200GrdY/7620 | 95 kV | |
| 7200 V | 75 kV | 13800GrdY/7970 | 95 kV | |
| 7620 V | 75 kV | 22860GrdY/13200 | 125 kV | |
| 12000 V | 95 kV | 23900GrdY/13800 | 125 kV | |
| 12470 V | 95 kV | 24940GrdY/14400 | 125 kV | |
| 13200 V | 95 kV | |||
| 13800 V | 95 kV | 34500GrdY/19920 | 150 kV | |
| 16340 V | 95 kV | |||
Learn more about pad transformers:3 Phase Pad Mounted Transformer
The following picture is the outline drawing of a three-phase 4.16 kV 2000 kVA pad-mounted transformer.
The weight of 2000kva pad mounted transformer depends on voltage, several accessories, efficiency value, winding material, etc. The following table is the weight of a 12.47 kV loop feed pad mounted transformer with cooper winding in Daelim.
| 12.47kV 2000kVA Padmount Transformer Weight | ||||||||
| Oil Weight | 950kg | |||||||
| Total Weight | 5865kg | |||||||
Learn more about Pad Mounted Transformer
The following table shows the dimensions of the Daelim 12.47 kV pad-mounted transformer.
| 12.47kV 2000kVA Padmount Transformer Dimension | ||||||||
| Height | 2220mm | |||||||
| Depth | 1600mm | |||||||
| Width | 2380mm | |||||||
The picture below is the 4160V 415GrdY/240V 2000 kVA three-phase pad-mounted transformer for a blockchain project.
2000 kVA Pad Mounted Transformers Quality and Tech Control
The DAELIM factory has strict technical and quality control to ensure each transformer’s reliable, safe, and electrical performance. Daelim 2000kva pad mounted distribution transformers have a long two-year warranty, and transformers have a service life of up to 40 years.
Down load: Daelim Tech Control
Please feel free to contact the Daelim Team if you have any concerns.
