2 MVA Pad Mounted Transformer for Utility

Behold the backbone of Canada's utility infrastructure—the 2MVA pad-mounted transformer. With a primary voltage of 4160Grdy/2400V and a secondary voltage of 800GrdY/461V, this transformer stands as a testament to efficiency and reliability in power distribution. Crafted in strict accordance with CSA standards and CAN/CSA802.1 energy efficiency guidelines, it embodies the pinnacle of engineering excellence.

Transformer Body
Transformer Body
2MVA Loop Feed Pad Mounted Transformer
2MVA Loop Feed Pad Mounted Transformer
Key Features

Key Features

  • Flexible Design: Configured for loop feed pad mount, ensuring seamless integration into utility infrastructure for enhanced adaptability.
  • Optimized Voltage Management: With primary voltage rated at 4160GrdY/2400V and secondary voltage at 800GrdY/461V, this transformer provides precise energy distribution tailored to your specific requirements.
  • Energy Efficiency: Engineered in strict compliance with CSA standards and CAN/CSA802.1 energy efficiency guidelines, promoting sustainable energy usage and reducing operational costs.
  • Enhanced Safety: Equipped with nine bay-o-net fuses for high voltage protection, prioritizing safety without compromising operational efficiency.
  • Fast Deployment: Experience streamlined project timelines with delivery within 8 weeks post-confirmation of outline drawing, ensuring swift implementation and minimal downtime.
Contact Daelim Transformer

Learn more about Pad Mounted Transformer

Technical Specifications

Vector Group: YNyN0

Cooling Method: ONAN

Winding Material: Aluminum

Impedance: 5.75%

Advanced Features: Includes a four-position load break switch for operational versatility.

Aesthetic Appeal: Finished in Munsell green, harmonizing with surrounding environments.

Certified Excellence: Tested to ANSI/IEEE C57.12.90 standards, ensuring reliability and regulatory compliance.

3 Phase Pad Mounted Transformer

Daelim Transformer: Your Trusted Partner in Transformer Solutions

With a legacy of excellence across North American projects, Daelim Transformer is a leading manufacturer renowned for delivering high-quality transformer solutions. From power transformers to pad-mounted transformers, substation transformers, and pole-mounted transformers, we export thousands of transformers to the United States and Canada annually.

At Daelim Transformer, our commitment to quality and safety is unwavering. Our UL-listed transformers, operating up to 44kV, set the industry standard, backed by rigorous quality control measures to ensure optimal performance and reliability.

Contact Daelim Transformer today to experience unparalleled reliability, efficiency, and excellence in transformer solutions.

Daelim Transformer Projects

Daelim Transformer Custom 1500 kVA Pad Mounted Transformer for Canada
1000 kVA Pad Mounted Transformers For Jamaica Market
2600 kVA Pad Mounted Transformer for Cryptocurrency Mining
Single Phase Pole Mounted Transformer For Guyana
4000 kVA Three Phase Power Transformer For Canada
230 kV Three Phase Power Transformer For USA Market
Single Phase Pad Mounted Transformer For USA Utility
Canadian 69 kV Substation Transformer Project
Pad Mounted Transformer for BESS System 4.0 MVA in Riverside County, California
2000 kVA Oil immersed Substation Transformer For Portugal Market
2550 kVA Pad Mounted Transformer For Data Center in Mexico, Missouri
2000 kVA Pad Mounted Transformers for Canadian Utility
4500 kVA Substation Transformers for Australian Mining Site
Supply of 37.5 kVA Single Phase Pad Mounted Transformers for Canadian Utility
500 kVA Distribution Transformer for the Greek Market
1750 kVA Pad Mounted Transformer for the Dominica
Three-Phase Power Transformers for Bitcoin Mining Facility in Texas

Related Article

500 kVA Distribution Transformer for the Greek Market

Today, we're thrilled to showcase a European transformer project tailored for the Greek market. This project involves the supply of 500 kVA distribution transformers, with an input voltage of 20 kV and an output voltage of 400V. The client has requested adherence to both IEC and TIER-II energy efficiency standards. With a total quantity of 5 units, this project marks another milestone in Daelim Transformer's commitment to delivering high-quality solutions worldwide.

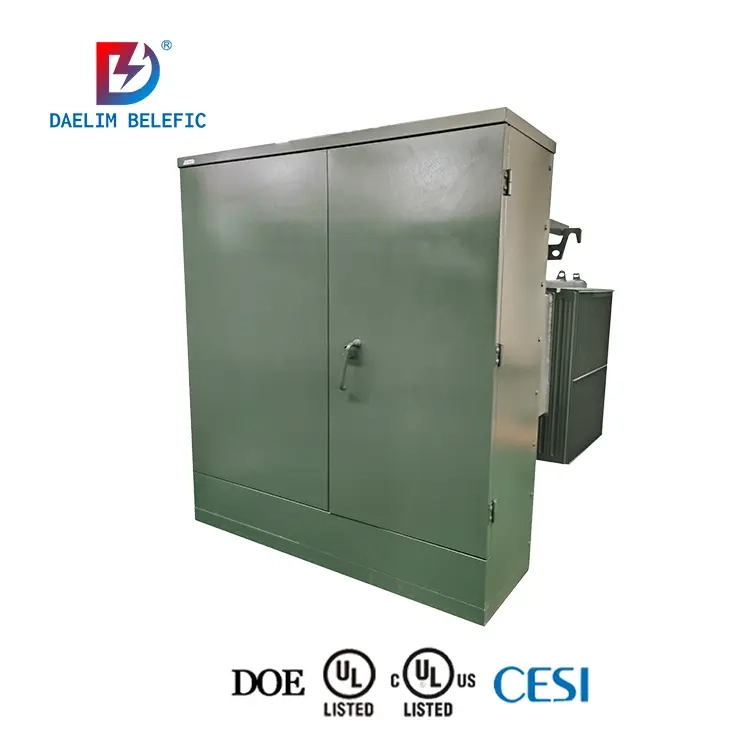

1750 kVA Pad Mounted Transformer for the Dominica Market
