1,000+ Electrical Transformers (7.2–34.5 kV, 25–3000 kVA) — UL Evaluated, Certificate of Compliance Available — In Stock & Ready to Ship from Houston, CA & Florida. Contact Us Today!
Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 , 24.94, 4.16 or others
Secondary Voltage Ratings: 208GrdY/120;416GrdY/240,480GrdY/277,/600GrdY/347,220y/127,480V,415v,600v or others
H.V. TAP RANGE: ±2×2.5% or others
CONNECTION TYPE: Dyn11/YNyn0 or others
TYPE: Loop feed/Radial feed
BIL: 30-150 kV
Standards: IEEE/ANSI, CAN/CSA, DOE
Application: BESS, Data center, Oil & Gas, Wind & Solar energy, EV charging, Utility
Power Rating: 1500 kVA, 1.5 MVA
Certificate: UL, cUL, CSA, SGS
Daelim Transformer is a professional manufacturer of transformers with UL listings and certifications for voltage levels up to 44kV, offering a comprehensive range of UL-certified pad-mounted transformers. Annually, we export thousands of these transformers to the United States and Canada. Proficient in IEEE/ANSI, CSA, DOE, NEMA, and other standards, our team ensures compliance with diverse regulatory requirements. In addition to UL certification, we also hold CSA, MF, CESI certificates, and third-party SGS test reports. With extensive project experience, we understand that each project has unique requirements. That’s why we offer customizable transformers, allowing adjustments to voltage, capacity, connection method, and special design to perfectly suit your needs. The 1500 kVA pad-mounted transformer can be customized to fit your project requirements. Contact Daelim Transformer today to receive the parameter sheet, drawings, and quotation for the 1500 kVA Pad Mounted Transformer.
| 1500 kVA Pad Mounted Transformer Specifications | |||
| Power rating | 1500kVA | Frequency | 60Hz |
| HV Voltage | 13200Grdy/7620V | Vectorgroup | YNyn0 |
| LV Voltage | 480Y/277V | No. of tap position | 7 |
| HV BIL | 95kV | Oil weight | 1690L |
| LV BIL | 30kV | Total weight | 5750Kg |
| Std. | IEEE Std C57/DOE | Impedance | 6.00% |
| Config | Dead front/loop feed | Color | Munsell 7 GY3.29/1.5 |
| Efficiency | 99.48% | Temperature rise | 65℃ |
You may enjoy: 1500 kVA Substation Transformer
Contact Daelim Transformer for special requirements
| 1500 kVA Transformer Accessories | |||
| Name | Qty | Name | Qty |
| Lifting lug | 4 | Drip tray | 1 |
| Hinged door | 2 | Door handle | 1 |
| Nameplate | 1 | Tap changer | 1 |
| Oil tank | 1 | ELSP fuse | 6 |
| Oil level gauge | 1 | HV H0 bushing | 1 |
| Ground steel pads | 4 | Bay-O-net fuse | 3 |
| L.V bushing(8 hole) | 4 | Upper fill valve | 1 |
| Pressure relief valve | 1 | Under oil arrester | 3 |
| Vacuum pressure gauge | 1 | Oil temperature gauge | 1 |
| Parking stand bracket | 8 | Two-position load break switch | 1 |
| Drain valve with sampler | 1 | HV bushing and bushing insert | 6 |
The ZGSL-H-1500/13.2-0.48 transformer stands as a robust 1500 kVA pad-mounted model, meticulously tailored by Daelim Transformer to meet the specific requirements of its United States-based clientele. Within this exclusive lineup, 6 of the 1500 kVA transformers employ the ONAN cooling method, incorporating 45# mineral oil as their insulating fluid, while the remaining 2 units adopt the KNAN cooling approach, utilizing the eco-conscious insulating fluid, FR3 vegetable oil.
It’s worth highlighting that these transformers not only boast UL listing but also adhere to DOE 2016 standards, underscoring their compliance with rigorous quality and energy efficiency criteria. Furthermore, Daelim Transformer is fully equipped to provide transformer insulating oil that carries the prestigious UL certification, further affirming its commitment to top-tier quality and safety standards.
With a power rating of 1500 kVA (1.5 MVA), this pad-mounted transformer boasts a primary voltage of 13.2Y/7.62kV grounded Wye and a secondary voltage of 480Y/277 V Wye. The transformer is designed for loop feed and has dead-front primary connections. Additionally, it incorporates a 5-position tap changer, allowing users to select their preferred voltage from options including 14400V, 13800V, 13200V, 12870V, 12000V, and 11700V. The system is further equipped with two-position load break switches, under-oil arresters, bay-o-net fuses, and ELSP fuses.
The conductor material used in the 1500 kVA transformer is aluminum, enhancing performance, reducing weight, and lowering costs. This transformer is designed with rectangular coils and a five-strand core featuring three coils and four core loops.
The 1500 kVA transformer features a compartmentalized design with a tank and a cable entrance compartment. The cable entrance compartment carries a NEMA 3R protection rating. Within the cable entrance compartment, the high-pressure and low-pressure chambers are located side by side, with a barrier in between. The cable entrance compartment base is designed to prevent small animals or insects from gaining access. Furthermore, there is a locking handle on the door of the low-voltage room. To access the 1500 kVA electrical front compartment, one must first turn the handle of the low-voltage room to release the door before opening the door of the high-voltage room. Daelim Transformer can also provide a Kirk key interlock for the 1500 kVA pad-mounted transformer to enhance its anti-theft security.
Gauges:
Included in the 1500 kVA transformer are gauges such as an oil temperature gauge, vacuum pressure gauge, and oil level gauge. These gauges do not rely on contacts but rather simulate digital signals through electrical means, with readings taken manually.
Arrestors:
Equipped with three under-oil arresters featuring disconnectors rated at 18 kV, the 1500 kVA pad-mounted transformer safeguards against high transient overvoltage hazards during lightning strikes. These arresters also limit freewheeling time and amplitude.
Protection Fuses:
The 1500 kVA transformer incorporates three bay-o-net fuses and 6 ELSP fuses on the high-voltage side. In the event of a transformer circuit failure or abnormal current increase, these fuses can disconnect the current to protect the transformer from damage.
Temperature Rise:
The 1500 kVA pad-mounted transformer is engineered for a 65°C temperature rise in both the oil and winding. This feature facilitates effective heat dissipation, improves reliability, and extends the transformer’s service life. With a 65°C temperature rise, the transformer can deliver a power rating of 1500 kVA (1.5 MVA).
The 34.5 kV pad-mounted transformer, boasting a power rating of 1500 kVA, features a unique design that sets it apart from conventional pad-mounted transformers. Notably, it incorporates LV side-mount , and the accessories for the LV chamber are situated within a control box located outside the oil tank. Additionally, the gauges on the 1500 kVA transformer come equipped with contacts, necessitating the inclusion of a small terminal box.
The 4.16 kV pad-mounted transformer, with a power rating of 1.5 MVA, adheres to the CSA standard. It is evident from the drawings that this transformer incorporates 6 bayonet fuses due to its substantial current capacity. The technical team at Daelim Transformer made this design choice. This 1.5 MVA transformer with a four-position loadbreak switch, further highlights its sophistication and adaptability within electrical distribution systems.
The 24.94 kV pad-mounted transformer, boasting a power rating of 1500 kVA, is UL-listed. This 1500 kVA transformer features a primary voltage of 24.94 kV Delta and a secondary voltage of 600Y/347 V grounded Wye. It is equipped with 6 HV bushing wells and 6 loadbreak bushing inserts. Additionally, it includes 4 LV bushings with 8 holes. The HV and LV winding material is copper, and the transformer’s vector group is Dyn1.

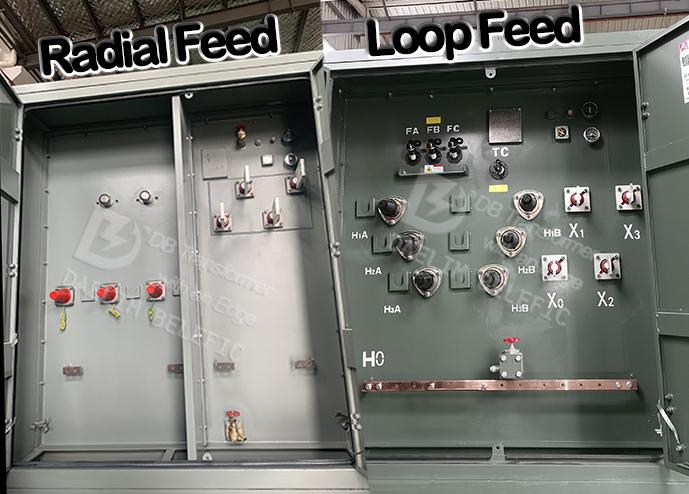

1500kva pad-mounted transformer has two structures loop feed and radial feed which can meet U.S. DOE efficiency value. Whether you are from the United States, Canada, Mexico, or Honduras, Daelim’s pad liquid transformers can meet local technical requirements.
The following table shows the standard primary voltage of 1500kva transformers. If you need other levels of voltage or special requirements, Daelim’s technical team can also customize the design.
| Standard Primary | ||||
| Voltage Rating | Minimum BIL | Voltage Rating | Minimum BIL | |
| Delta or Wye | Ground Wye | |||
| 2400 V | 45 kV | 4160GrdY/2400 | 65 kV | |
| 4160 V | 60 kV | 12470GrdY/7200 | 95 kV | |
| 4800 V | 60 kV | 13200GrdY/7620 | 95 kV | |
| 7200 V | 75 kV | 13800GrdY/7970 | 95 kV | |
| 7620 V | 75 kV | 22860GrdY/13200 | 125 kV | |
| 12000 V | 95 kV | 23900GrdY/13800 | 125 kV | |
| 12470 V | 95 kV | 24940GrdY/14400 | 125 kV | |
| 13200 V | 95 kV | |||
| 13800 V | 95 kV | 34500GrdY/19920 | 150 kV | |
| 16340 V | 95 kV | |||
Learn more about pad transformers:3 Phase Pad Mounted Transformer-Daelim Transformer
The following table is the tech datasheet of the 13.8 kV 1500 kVA pad-mounted three-phase transformer.
| Three Phase Pad MountTransformer 1500 kVA 13800Delta:480GrdY/277V | ||
| DATA | UNIT | Offered |
| Supplier | …. | Beijing Daelim |
| Model | …. | ZGS11-H-1500/12.47-0.48 |
| Standard manufacturing and testing | …. | ANSI/IEEE Std C57.12.00 ANSI/IEEE C57.12.90 ANSI/IEEE Std C57.12.34 |
| Features | ||
| Type | Loop feed pad mount | |
| Installation | Outdoor | |
| Altitude above sea level/Ambient temperature | m/℃ | 1000/50 |
| Altitude | ≤1500m | |
| Rated Power | kVA | 1500 |
| HV | V | 12470Delta |
| LV | V | 480GrdY/277V |
| Rated Frequency | Hz | 60 |
| Cooling System | ONAN | |
| Refrigerant | Mineral oil (PCB FREE) | |
| Losses | ||
| No load losses at rated voltage and rated frequency on the principal tap | W | 1700 |
| Load loss at rated voltage | W | 9500 |
| Vector Group | Dyn1 | |
| Core material | Grain-oriented silicon steel | |
| Core legged | 3 | |
| Winding material | Aluminum | |
| Tap changer | ||
| On-load or off-circuit | off-circuit | |
| Position of tapped winding | HV | |
| Tap Voltages HV | % | ±2×2.5% |
| Highest voltage for the equipment | kV | 35 |
| Rated current of tap changer | A | 63 |
| High voltage electrical characteristics of transformers and assembled load break terminals | ||
| Insulation class | kV | 15 |
| BIL | kV | 95 |
| Low voltage | ||
| Insulation class | kV | 1.2 |
| BIL | kV | 30 |
| Audible sound level | db | 55 |
| Impedance | % | 5.75 |
| Colors Tank | Munsell Green | |
1500kVA pad-mounted transformer weighs about 3500kg. The table below is the specific weight of a 13.8 kV 1500 kVA pad mount transformer with copper windings designed by Daelim. Due to the difference in standards, voltage, winding material, accessories, etc., the weight of the 1500 kVA pad transformer will be different. Also, the price of the 1500kva pad mount transformer is different.
| Weight | ||
| Oil | kg | 1050 |
| Total | kg | 3900 |
Learn more about Pad Mounted Transformer
The following table shows the dimensions of the 1500kva pad mount transformer designed and produced by Daelim Transformer.
| 1500kVA Pad Mout Transformer Dimentions | ||
| Height | mm | 1900 |
| Depth | mm | 1950 |
| Width | mm | 1730 |
The picture below is a 12.47kV 1250 kVA three-phase pad-mounted transformer with ul listed for the USA market. From the transformer nameplate in the figure below, you can see the UL logo and query code. There is also some important parameter information about the transformer such as transformer efficiency, temperature rise, voltage, capacity, and loss.
The DAELIM Transformer factory has strict technical and quality control to ensure each transformer’s reliable, safe, and electrical performance. The 1500kva pad-mounted transformers have a long two-year warranty, and transformers have a service life of up to 40 years.
Down load: Daelim Tech Control
Please feel free to contact the Daelim Team if you have any concerns.
Click here to check Daelim international pad-mounted transformer projects!
