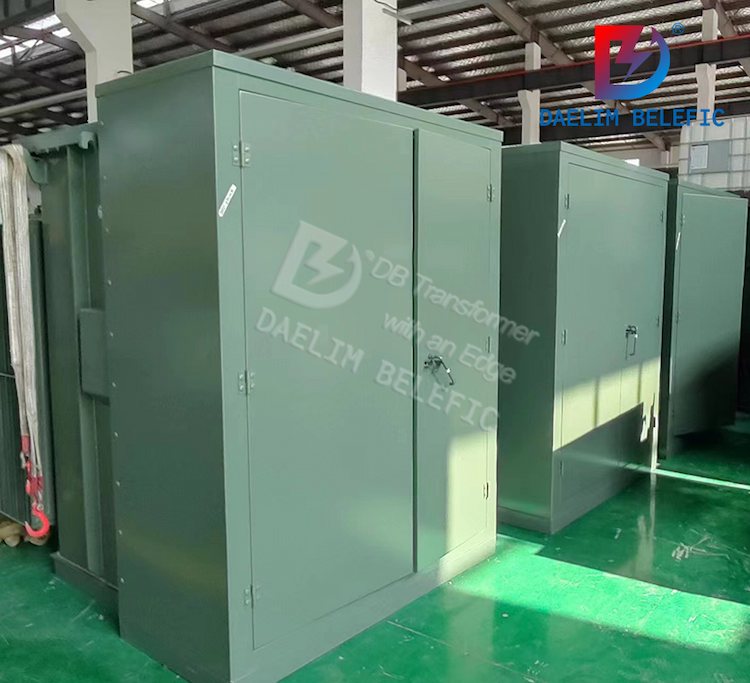

3000 kVA Pad Mounted Transformer

The ZGSL-H-3000/27.6/13.8 is a three-phase loop pad-mounted transformer with a power rating of 3000 kVA (3MVA). Its primary voltage is 27600Delta, and the secondary voltage is 13800Delta. This transformer is custom-manufactured for a Canadian customer. When ordered, the Daelim Transformer team meticulously adheres to CSA C227.4 and CAN/CSA C802 standards throughout the design and production process. Furthermore, it holds cUL certification and is listed by cUL.

The ZGSL(F)-H-3000/3750/13.8/0.48 is a pad-mounted transformer equipped with a fan. This transformer boasts a capacity of 3000 kVA when operating in a self-cooling mode. However, when the fan is activated, its capacity increases to an impressive 3750 kVA. Customers have the flexibility to choose whether to engage the fan based on the live equipment's load requirements.

Custom-crafted by Daelim Transformer for American clients, this 3000/3750 kVA transformer features a high voltage rating of 13.8 kV in Delta connection and a low voltage rating of 480Y/277 in Wye connection. The transformer is equipped with bayonet fuses and current limiting fuses for protection. Additionally, it includes an oil level indicator and an oil thermometer with contacts.

The ZGS-Z-3000/12.47/0.6 is a meticulously engineered three-phase radial pad-mounted transformer, exclusively tailored by Daelim Transformer to cater to the specialized needs of Canadian renewable energy customers engaged in solar power generation. This transformer is classified under the KNAN cooling category, employing biodegradable vegetable oil with an impressive ignition point exceeding 300°C as its insulating fluid. With a primary voltage rating of 12.47 kV, it seamlessly integrates into the distribution grid, ensuring optimal performance in solar energy applications. The secondary voltage stands at 600V, featuring a side-mount configuration that facilitates a seamless connection to inverters, efficiently converting DC power to AC power for transmission and utilization.

Daelim Transformer's pad-mounted transformer, tailored for solar power generation, epitomizes a green, environmentally responsible, safe, and highly reliable solution. Its exceptional efficiency and seamless compatibility with inverter models make it an ideal choice for modern solar energy applications.

The ZGSL-H-3000-27.6-0.6 is a 3 MVA transformer, purpose-built by Daelim Transformer. This pad-mounted transformer is designed with a dead front and loop feed configuration, rendering it suitable for both indoor and outdoor installations. Its versatile applicability extends to residential areas, industrial zones, public utility departments, commercial spaces, and various other settings, ensuring the safe, dependable, and efficient distribution of electrical power. Notably, this specific ZGSL-H-3000-27.6-0.6 model is a bespoke solution, customized to meet the unique requirements of a Canadian customer. The order comprises a total of eight sets of 3 MVA transformers, each tailored to specific specifications. Among these, three units are configured with the YNd1 connection group and employ a three-legged core construction, while the remaining five units feature the YNyn0 connection group and utilize a five-legged core construction. All units employ aluminum as the primary conductive material and employ the ONAN cooling method for efficient thermal management.

Compliance: This 3 MVA transformer conforms to the CSA C227.4 Standard, ensuring that it meets stringent industry requirements. Moreover, its exceptional energy efficiency rating of 99.37% aligns with the CAN/CSA802.1 Standard, exemplifying its commitment to good performance.

Voltage Specifications: The industrial transformer boasts a primary voltage of 3-phase 27.6 kV, catering to specific needs. The secondary voltage configuration is 3-phase 600/347V, a voltage level tailored exclusively for deployment in Ontario, Canada.

Versatile Tap Changer: Equipped with a 5-position tap changer on the high-voltage side, this transformer offers flexibility by allowing adjustments to the high-voltage settings. These settings include 28.95 kV, 28.290 kV, 27.6 kV, 26.91 kV, and 26.22 kV, ensuring precise adaptation to varying operational requirements.

Safety and Utility Features: These 3 MVA transformers are designed with a 4-position loadbreak switch, three gauges without contacts, a pressure relief valve, and an oil charging and unloading valve, emphasizing safety, control, and operational convenience. It is important to note that no protection fuse is present within the system.

Standards of Design and Construction: Transformers designed and constructed to meet specific industry standards, such as CSA (Canadian Standards Association), IEC (International Electrotechnical Commission), or IEEE/ANSI (Institute of Electrical and Electronics Engineers/American National Standards Institute) standards, can vary in price. Compliance with more stringent or specialized standards can lead to increased manufacturing costs.

Transformer Standards Comparison: It's noteworthy that transformers manufactured to different international standards can exhibit price disparities. For instance, CSA standard 3MVA transformers may be approximately 20% more expensive than their IEC counterparts. Similarly, IEEE/ANSI standard transformers are generally priced higher than CSA standard transformers, reflecting differences in design requirements and manufacturing specifications.

In conclusion, pricing for a 3000 kVA (3 MVA) transformer is a multifaceted consideration, with various factors at play. Customers seeking such transformers should carefully assess their specific requirements, including voltage levels, materials, accessories, and standards compliance, to obtain an accurate and competitive pricing estimate from reputable transformer manufacturers or suppliers. You can send the transformer specifications to Daelim Transformer, and their team will provide you with an accurate transformer price in the shortest possible time.
