500 kva Pad Mounted Transformer
- Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 or others
- Secondary Voltage Ratings: 208GrdY/120;416GrdY/240,480GrdY/277,/600GrdY/347,220y/127,480V,415v,600v or others
- H.V. TAP RANGE: ±2×2.5% or others
- CONNECTION TYPE: Dyn11/YNyn0 or others
- TYPE: Loop feed/Radial feed
- BIL: 30-150kV
- Standards: IEEE, DOE, CSA, UL
- Application: EV charging, Utility, bess, Data center, Oil & Gas, Wind & Solar energy
- Power Rating: 500 kVA
- Certificate: UL, cUL, CSA, SGS
Daelim Transformer is a professional manufacturer of transformers with UL listings and certifications for voltage levels up to 44kV, offering a comprehensive range of UL-certified pad-mounted transformers. Annually, we export thousands of these transformers to the United States and Canada. Proficient in IEEE/ANSI, CSA, DOE, NEMA, and other standards, our team ensures compliance with diverse regulatory requirements. In addition to UL certification, we also hold CSA, MF, CESI certificates, and third-party SGS test reports. With extensive project experience, we understand that each project has unique requirements. That's why we offer customizable transformers, allowing adjustments to voltage, capacity, connection method, and special design to perfectly suit your needs. The 500 kVA pad-mounted transformer can be customized to fit your project requirements. Contact Daelim Transformer today to receive the parameter sheet, drawings, and quotation for the 500 kVA Pad Mounted transformer.
Quote Now
500 kVA 27.6 kV Transformer
This 500 kVA transformer is designed with a dead-front configuration and follows a loop feed layout. Crafted by Daelim Transformer, a company with cUL certification, this transformer is tailored for a Canadian clientele. Its specifications include a high voltage of 27.6 kV in a Delta connection, while the low voltage stands at 600Y/347V. It adheres to the CSA C227.4 Standard, with a focus on energy efficiency aligning with the CAN/CSA 802.1 Standard.

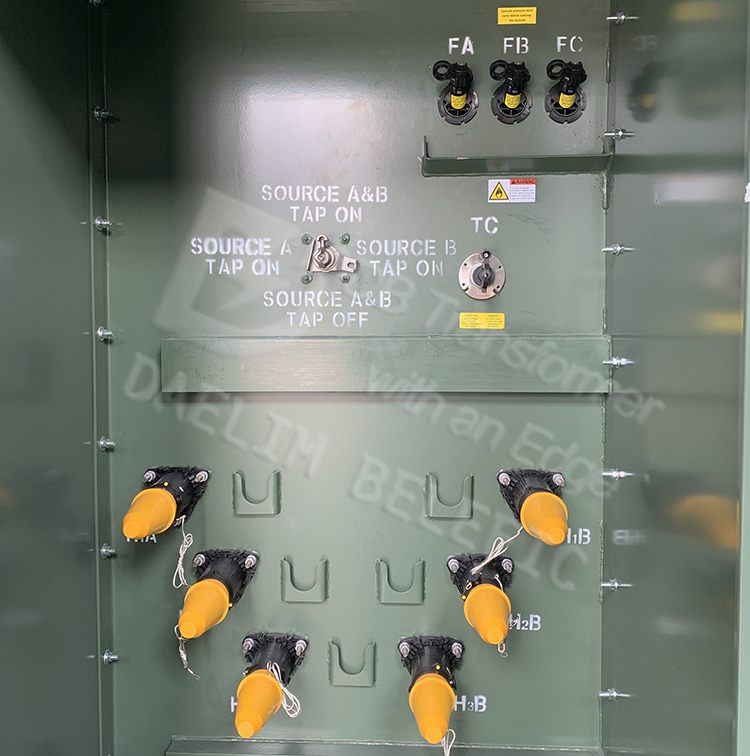

The 500 kVA transformer is equipped with 6 loadbreak bushing inserts (rated at 35kV, 200A), 3 elbow arresters, 6 HV bushing wells, 4 LV bushings (each with 4 holes), and a four-position loadbreak switch. Notably, the transformer is fitted with a vacuum pressure gauge, a temperature indicator, and an oil level gauge. These components are equipped with contacts and feature alarm functionality, enabling remote monitoring of the transformer's internal conditions.
Contact Daelim Transformer500 kva Pad Mounted Transformer
500 kVA Pad Mounted Transformer types
500kva pad-mounted transformer has two structures loop feed and radial feed which can meet U.S. DOE efficiency value.
500 kVA Pad Mounted Transformer Outline Drawing
The following figure shows the 500kva 27600GrdY/16000 pad-mounted transformer designed by Daelim for a Canadian customer. The iron core structure is five-legged.
500 kVA Pad Mounted Transformer Standard Primary
| Standard Primary | ||||
| Voltage Rating | Minimum BIL | Voltage Rating | Minimum BIL | |
| Delta or Wye | Ground Wye | |||
| 2400 V | 45 kV | 4160GrdY/2400 | 65 kV | |
| 4160 V | 60 kV | 12470GrdY/7200 | 95 kV | |
| 4800 V | 60 kV | 13200GrdY/7620 | 95 kV | |
| 7200 V | 75 kV | 13800GrdY/7970 | 95 kV | |
| 7620 V | 75 kV | 22860GrdY/13200 | 125 kV | |
| 12000 V | 95 kV | 23900GrdY/13800 | 125 kV | |
| 12470 V | 95 kV | 24940GrdY/14400 | 125 kV | |
| 13200 V | 95 kV | |||
| 13800 V | 95 kV | 34500GrdY/19920 | 150 kV | |
| 16340 V | 95 kV | |||
Learn more about pad transformers:3 Phase Pad Mounted Transformer-Daelim Transformer
500kVA Pad Mounted Transformer Weight
500kVA pad-mounted transformer with a total weight of about 2700kg. The table below is the specific weight of a 24.94kV 500kVA pad mount transformer with aluminum windings. Depending on the voltage, material, and optional accessories, the weight of the 500kVA transformers will be somewhat different.
| Weight | ||
| Oil | L | 1055 |
| Total | kg | 2700 |
Learn more about Pad Mounted Transformer
500kVA Pad Mounted Transformers Dimensions
| 500kVA Pad Mounted Transformer Dimensions | ||
| Height | mm | 1750 |
| Depth | mm | 1300 |
| Width | mm | 1480 |
500kVA Pad Mounted Transformers Nameplate
500kVA Pad Mounted Transformers Packing and Shipping
500 kVA pad mount transformers use the packaging method of wooden cases and wooden pallets.

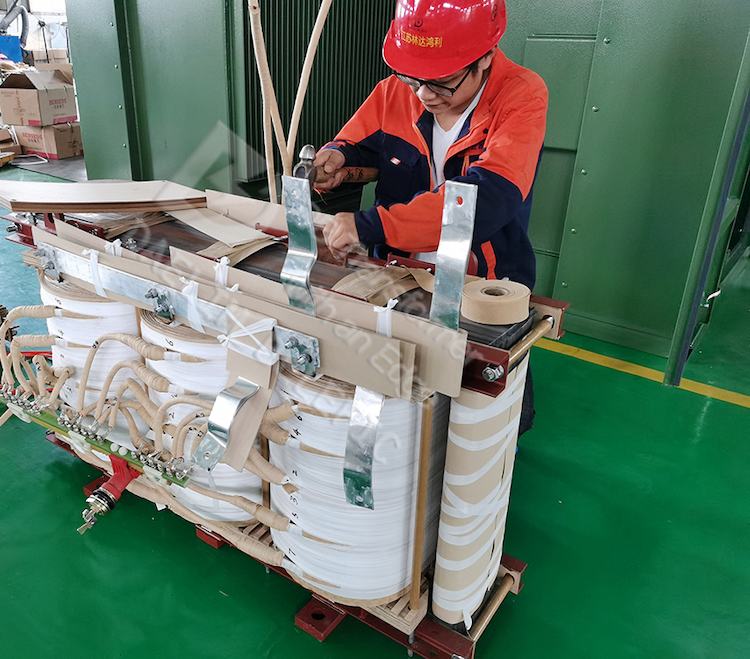

500 kVA Pad Mounted Transformers Quality and Tech Control
The DAELIM factory has strict technical and quality control to ensure each transformer's reliable, safe, and electrical performance.
