1500 kVA Substation Transformer
- Primary Voltage Ratings: 13800V
- Secondary Voltage Ratings: 480V
- H.V. TAP RANGE: 13110V-14490V
- CONNECTION TYPE: Dyn1
- TYPE: SF-1500(2000)/13.8/0.48
- BIL: 30-90kV
- Standards: CSA C88-16 & C802.3
- Application: Distribution system
- Power Rating: 1500 kVA, 1.5 MVA
The 1500 kVA substation transformer has been designed in accordance with the CSA C88 and C802.3 standards specifically for use in Canada. It features a primary voltage rating of 13.8 kV and a secondary voltage rating of 480V. These specifications ensure compliance with Canadian electrical standards and make the transformer suitable for various distribution applications in Canada.
Quote Now

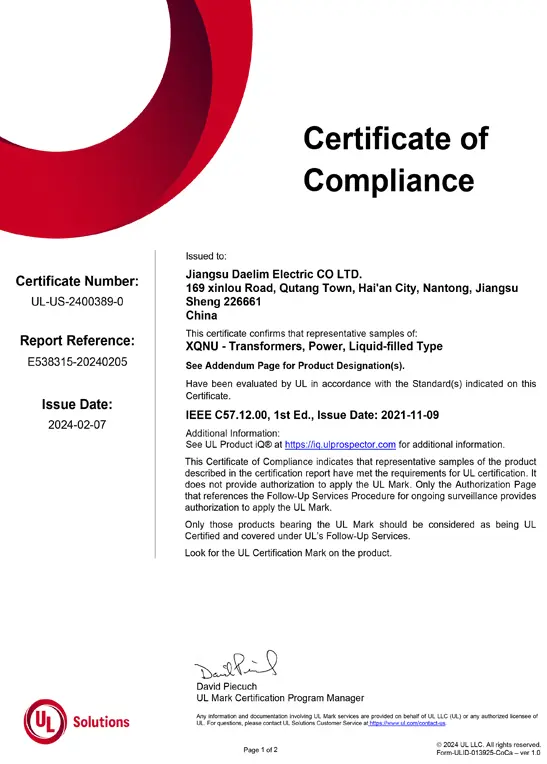

DB Transformer is a UL/CUL/CSA certificated transformer manufacturer. The SF-1500(2000)-13.8-0.48 transformer model specifically holds a cUL certificate. This certification ensures that the transformer meets the safety and quality standards set by Underwriters Laboratories (UL) and the Canadian Standards Association (CSA). By choosing the SF-1500(2000)-13.8-0.48 transformer with cUL certification, customers can have confidence in its compliance with rigorous industry standards for electrical safety and performance.
1500 kVA Transformer Fittings
| Fans | HV bushing (2 hole) |
| LV bushing (6 hole ) | |
| CT box | Liquid level gauge |
| Radiators | Pressure relief device |
| Handhole | Name plate(stainless steel) |
| Tap changer | Lifting hook for complete transformer |
| Thermometer | Drain valve with 3/8" sampler |
| Marshalling box | Vacuum pressure gauge (yz-70) |
| Throat flange,lv | Nitrogen blanket with purge valve |
| Throat flange,h.v | Ground pad on tank wall |
| Upper fill valve | Winding temperature indicator |
1500 kVA Transformer Report
The SF-1500(2000)kVA-13.8kV-0.48kV substation transformer undergoes comprehensive testing in accordance with the CSA C88 and C802.3 standards. The testing covers various parameters such as ratio, resistance, no-load loss and no-load current, induced overvoltage withstand, insulation resistance, leakage, and more.
Prior to packaging and transportation, the transformer must successfully pass these stringent tests to ensure it meets the required technical standards. A detailed test report, similar to the one shown in the picture, is generated after each test and provided to the customer. This report serves as evidence of the transformer's performance and compliance with the specified standards.
Additionally, Daelim Transformer offers the option of online video supervision during the testing process. This allows customers to remotely observe and monitor the experiments in real-time, ensuring transparency and enabling effective communication throughout the testing phase.
By conducting thorough testing, providing detailed reports, and offering the option of online video supervision, Daelim Transformer ensures the quality, reliability, and conformity of the SF-1500(2000)kVA-13.8kV-0.48kV substation transformer.
Get Price
1500kVA (1.5MVA) Transformer
Transformer cUL Nameplate
1500kVA Transformer Assemble
1500 kVA Transformer Drawing
Other 1500 kVA (1.5MVA) Substation Transformer
11(6.6)kV 1500 kVA Transformer
The SL-1500/11(6.6)/1 type transformer features a double high voltage design, with high voltage options of 11 kV and 6.6 kV, and a low voltage rating of 1 kV. Adhering to the AS 60076 standard, and utilizing biodegradable vegetable oil as the insulating fluid, the SL-1500/11(6.6)/1 transformer offers reliable and environmentally friendly performance for the Australian market. The specific parameters of the transformer are as follows
| Standards | AS/NZS 60076 | Width(mm) | 1800 |
| Method | KNAN | Length(mm) | 1880 |
| HV | 11kV/6.6kV | Height(mm) | 1895 |
| LV | 1kV | Oil weight | 1250KG |
| Power rating kVA | 1500 | total weight | 5000KG |
| Winding material | COPPER | Frequency | 50Hz |
| Vector Group | Dyn11 | No. OF TAP POSITION | 5 |
Learn more about Substation Transformer
Send Inquiry Now11 kV 1500 kVA Transformer
The 1500 kVA transformer was designed with a primary voltage of 11kV and a secondary voltage of 415V. It features a self-cooling method, eliminating the need for additional cooling equipment. The design and production of this transformer adhere to the IEC 60076 standard, ensuring high-quality and reliable performance.
This particular transformer is specifically suitable for applications in blockchain, where it serves the purpose of transforming the primary voltage to the required secondary voltage for the efficient and safe operation of the mining equipment. The main specifications data are as follows:
| Standards | IEC 60076 | Width(mm) | 1260 |
| HV | 11000V | Length(mm) | 1850 |
| LV | 415V | Height(mm) | 1780 |
| Power rating | 1500kVA | Routine Tests | ANSI C.57.12.90) |
| Method | ONAN | Oil weight | 550KG |
| Vector Group | Dyn1 | Total weight | 3720KG |
| Winding material | ALUMINIUM | Impedance | 5.75% |
| No. OF TAP POSITION | 5 | Color | Grey 70 |
You may enjoy: Pad Mounted Transformer
Get Price
1500 kVA Substation Transformer Video
Related Products
Related Article

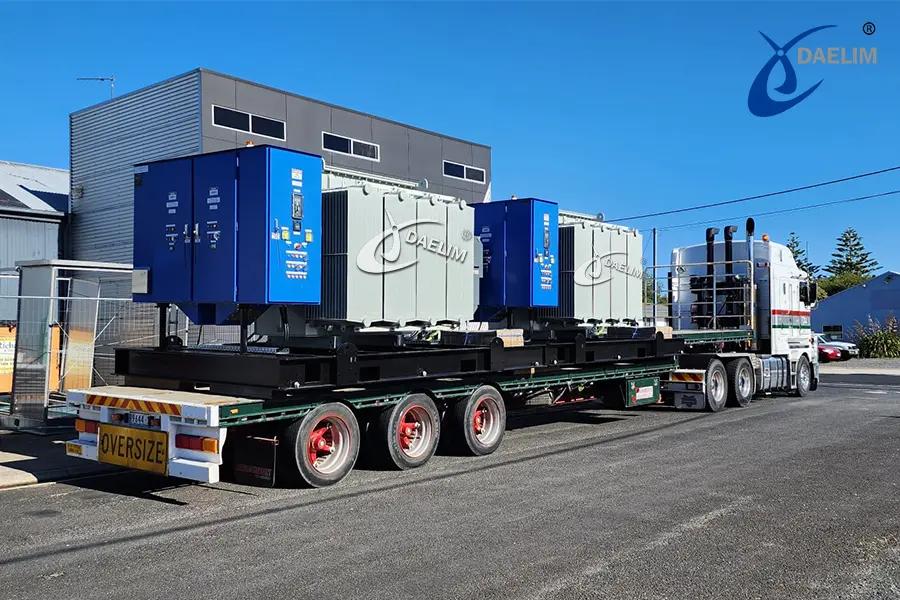

4500 kVA Substation Transformers for Australian Mining Site
Today, we introduce a project by Daelim Transformer aimed at supplying transformers to a mining site in Australia. This project entails the provision of two units of 4500 kVA substation transformers tailored to fit the narrow confines of mining tunnels. Due to space constraints, the transformers need to be compact in size and mounted on mobile racks for easy maneuverability within the mine shafts. This necessitates meticulous design to meet the strict dimensional requirements set by the client.

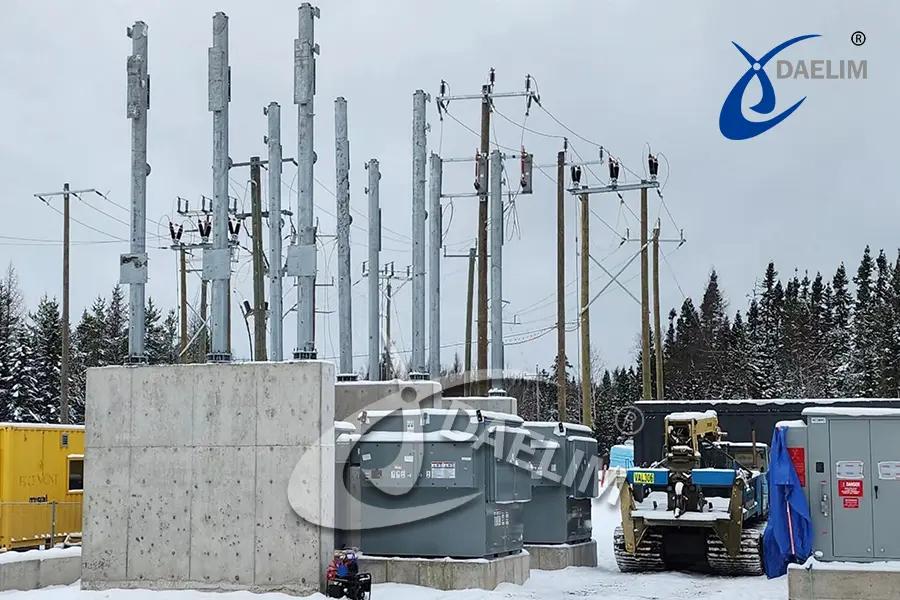

4000 kVA Three Phase Power Transformer For Canada
A Canadian customer has shared photos with us, showcasing the installation and operation of two 4000kVA transformers designed and produced by Daelim Transformer. The transformers have received highly positive feedback from the customers, who found them to be efficient and expressed satisfaction with the collaborative experience working with the Daelim Transformer team. We look forward to further expanding our cooperation with Daelim Transformer in the future.

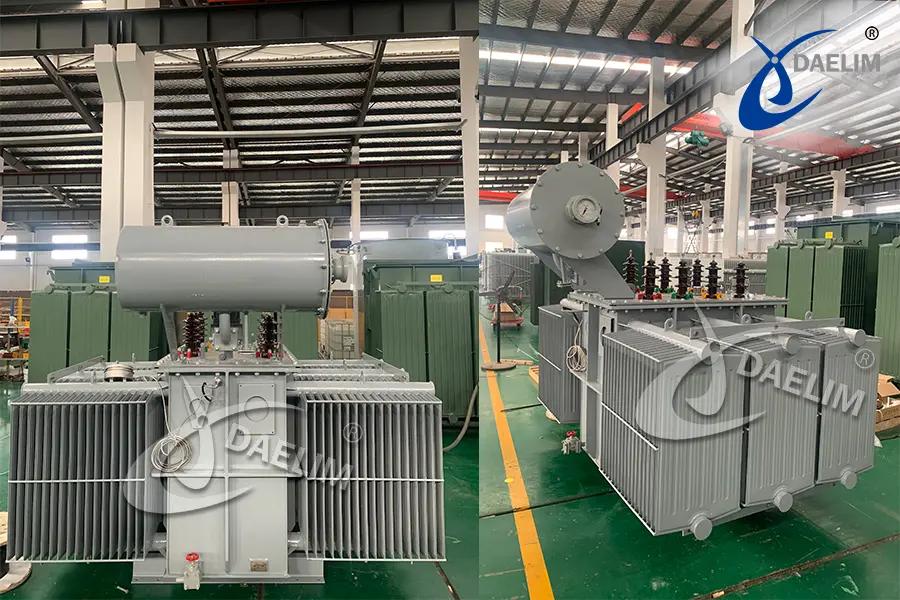

2000 kVA Oil immersed Substation Transformer For Portugal Market
Today, we introduce Daelim Transformer's export of a 2000 kVA oil-immersed substation transformer to Portugal. This transformer represents our commitment to delivering high-quality electrical solutions to global markets. With meticulous design and engineering, this transformer is tailored to meet the specific needs of our customers in Portugal, ensuring reliable performance and efficiency. Daelim Transformer continues to uphold its reputation for excellence, providing innovative solutions that power progress and reliability worldwide.

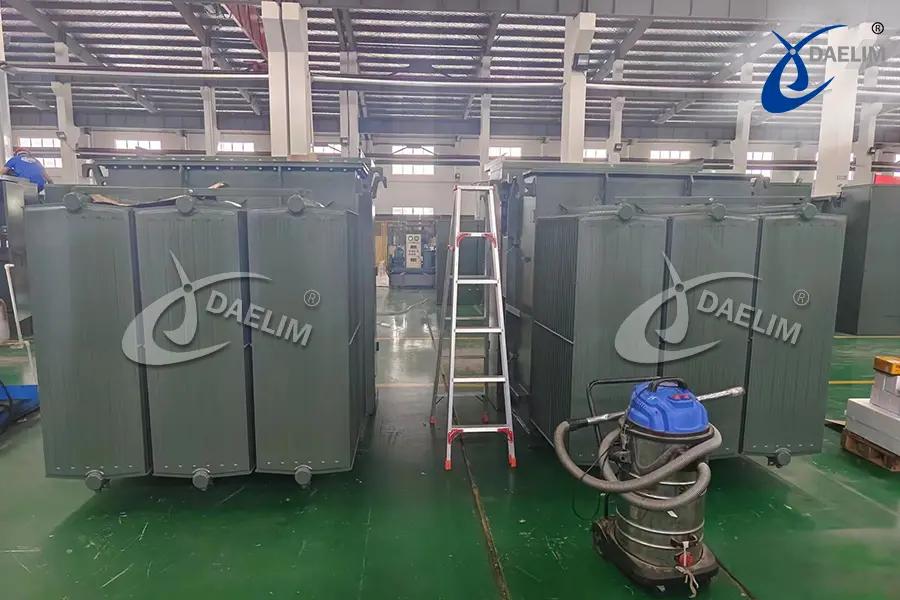

2550 kVA Pad Mounted Transformer For Data Center in Mexico, Missouri

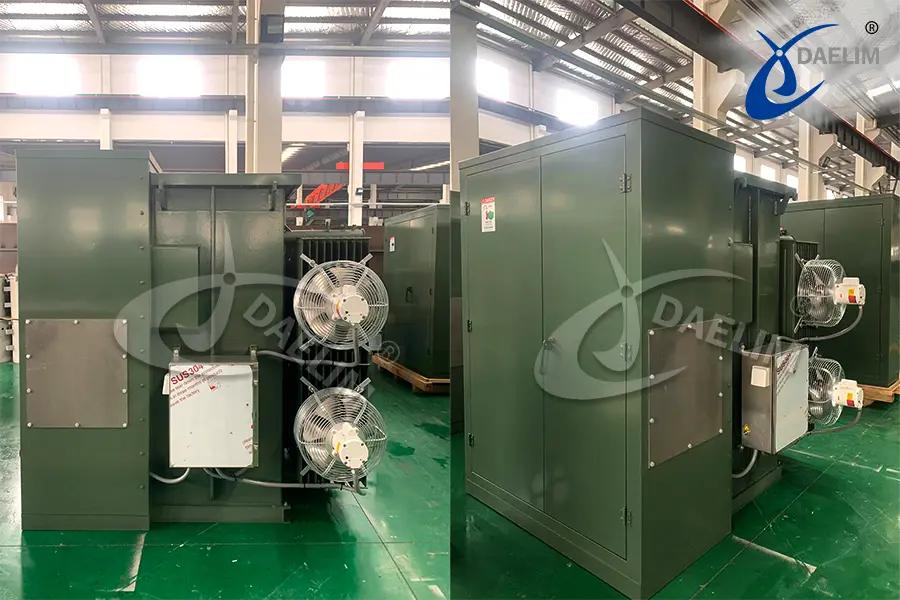

Today, we're excited to showcase Daelim Transformer's involvement in a project supplying four 2550 kVA pad mounted transformers tailored for a data center located in Mexico, Missouri. Data centers, known for their substantial power demands, require reliable solutions to ensure seamless operation during peak electricity usage.
2000 kVA Pad Mounted Transformers for Canadian Utility
Daelim Transformer is pleased to announce its contribution to a utility project in Toronto, Canada, involving the supply of two units 2000 kVA pad mounted transformers. These transformers are integral to enhancing the power infrastructure in the region. The project demands adherence to CSA standards, with a stringent delivery deadline of 10 weeks to meet the urgent needs of the client.

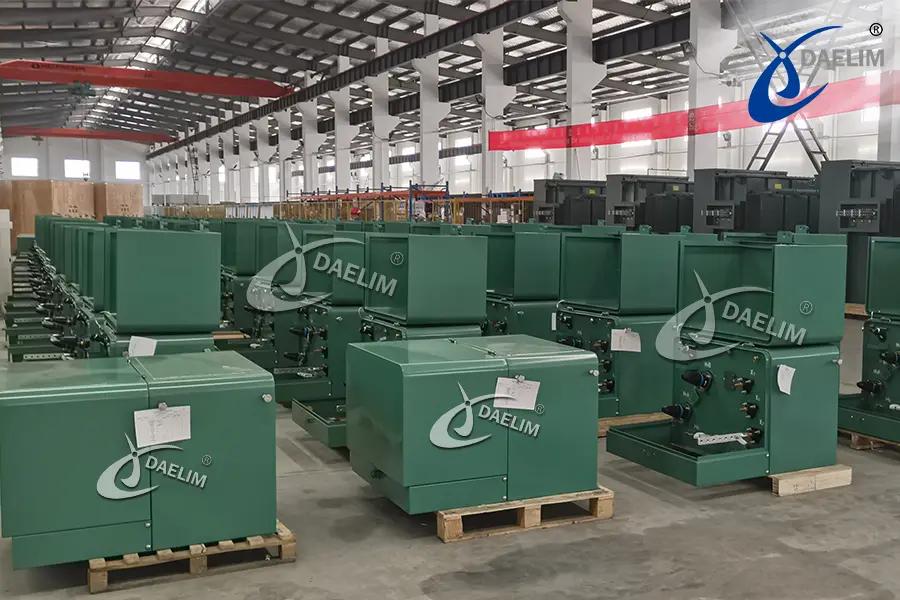

Supply of 37.5 kVA Single Phase Pad Mounted Transformers for Canadian Utility
Today, we are excited to introduce a project undertaken by Daelim Transformer aimed at supplying transformers to a Canadian utility. This project involves the delivery of 80 units of 37.5 kVA single-phase pad mounted transformers, specially designed to meet the utility's requirements. With a high voltage (HV) rating of 24940GRDY/14400 V and a low voltage (LV) rating of 240/120 V, these transformers are vital components in the utility's infrastructure.
500 kVA Distribution Transformer for the Greek Market

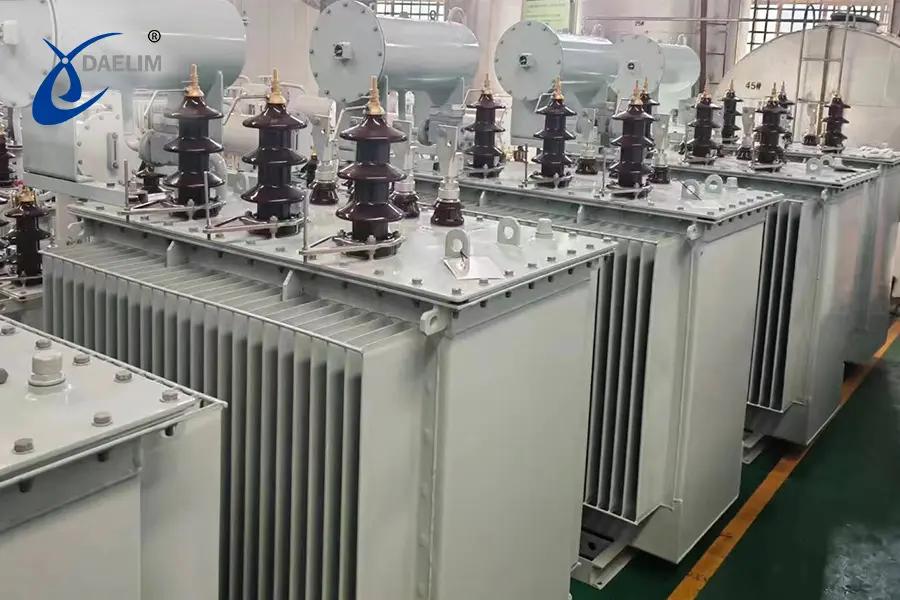

Today, we're thrilled to showcase a European transformer project tailored for the Greek market. This project involves the supply of 500 kVA distribution transformers, with an input voltage of 20 kV and an output voltage of 400V. The client has requested adherence to both IEC and TIER-II energy efficiency standards. With a total quantity of 5 units, this project marks another milestone in Daelim Transformer's commitment to delivering high-quality solutions worldwide.
1750 kVA Pad Mounted Transformer for the Dominica Market
Today, we're excited to present a transformer project tailored for the Dominican market. Our 1750 kVA pad mounted transformer is designed to meet the specific requirements of our clients in Dominica. This step-down transformer boasts a primary voltage of 13.8 kV and a secondary voltage of 480Grdy/277V, adhering to the IEEE C57.12.34 standard. With its robust features and reliable performance, this transformer is set to enhance the power distribution infrastructure in Dominica.
Three Phase Power Transformers for Block Chain Facility in Texas!

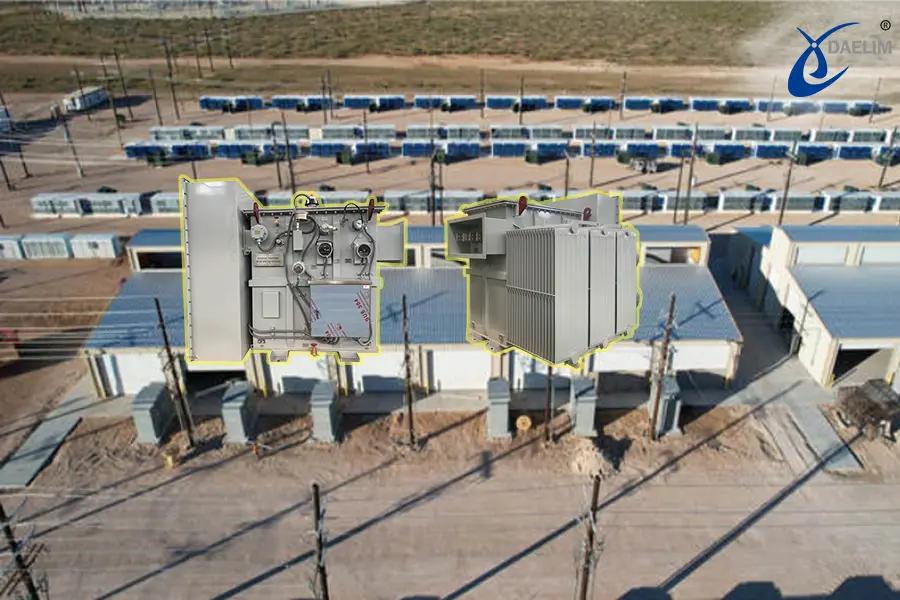

Daelim Transformer thrilled to share details of our project - the supply of 90 units of three-phase power transformers for a large-scale block chain operation in Odessa, Texas. Each transformer is rated at 2500(3000)KVA with a primary voltage of 34.5kV Delta and a secondary voltage of 480GrdY/277. With strict UL certification requirements and a focus on high-quality accessories from reputable brands, this project demanded precision, efficiency, and reliability.

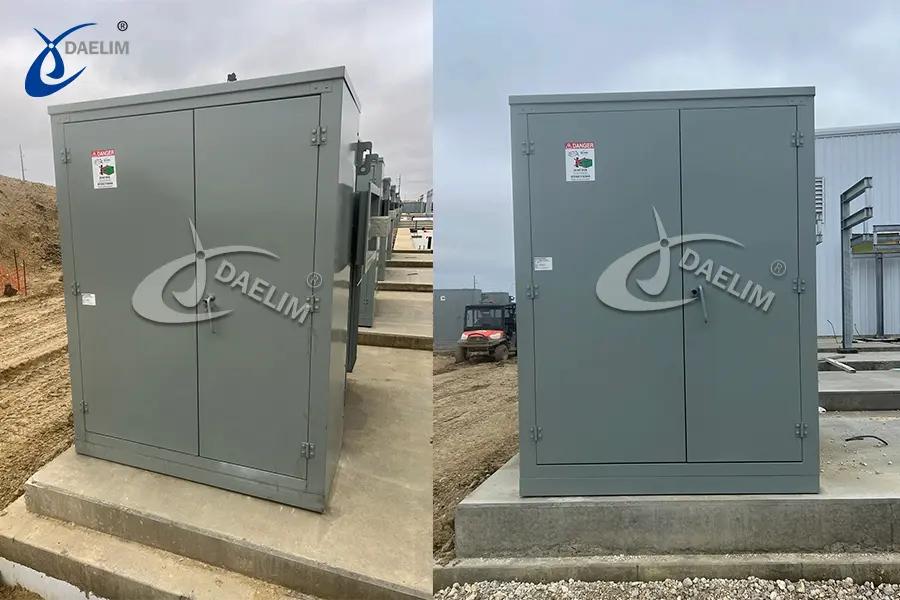

2600 kVA Pad Mounted Transformer for Blcokchain
Daelim Transformer successfully provided three customized 2600 kVA pad mounted transformers to power a state-of-the-art blockchain facility in Texas, USA. Our transformers were meticulously designed to meet the unique demands of the mining operation, ensuring seamless power distribution with unwavering reliability and efficiency.

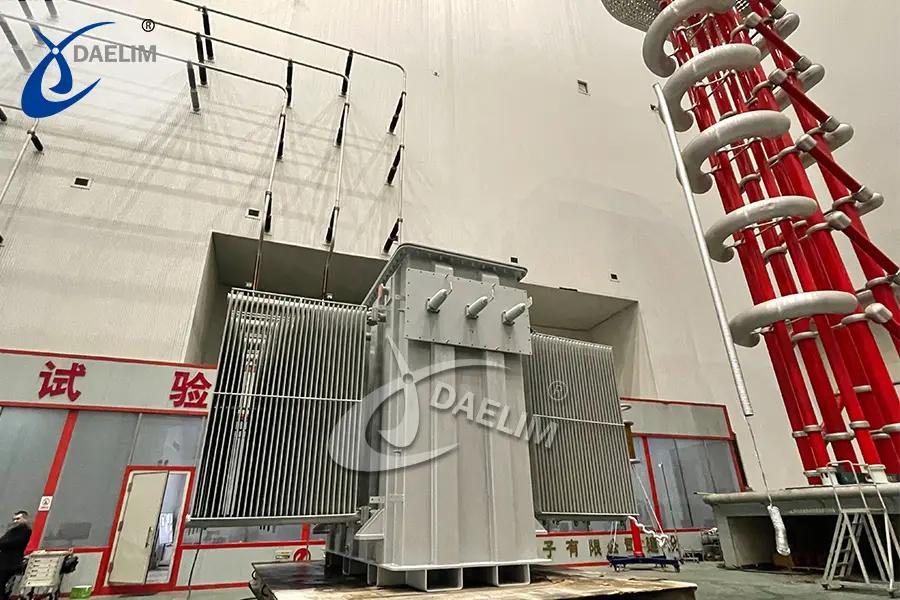

20MVA Power Transformer for the United States
This project involves the development of a 20 MVA three-phase power transformer tailored for the United States market. The primary voltage is 24.94kV, and the secondary voltage is 4.16kV, indicating it functions as a step-down transformer. The design and production fully comply with IEEE C57.12.00 standards and have passed third-party UL team testing. All accessories also adhere to IEEE standards. FR3 vegetable oil serves as the insulating liquid for the transformers.

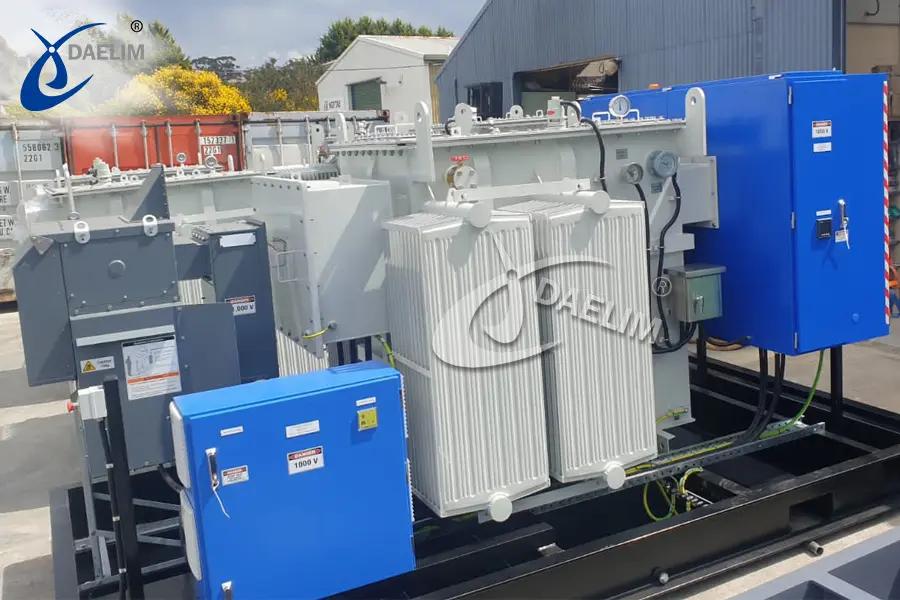

1500 kVA Transformer for Australian Mining Project
Introduce the 1500 kVA transformer tailored for Australian mining projects. The transformer operates in a three-phase configuration, with a total of four units deployed. Notably, its primary voltage stands at 11kV, while the secondary voltage is 1kV. Characterized by its compact size, emphasis on safety, and unwavering reliability, this transformer is meticulously designed and manufactured to meet the stringent requirements outlined in AS 60076 and AS efficiency value standards.Let's delve into the key features and specifications of this essential solution.
2 MVA Pad Mounted Transformer for Utility

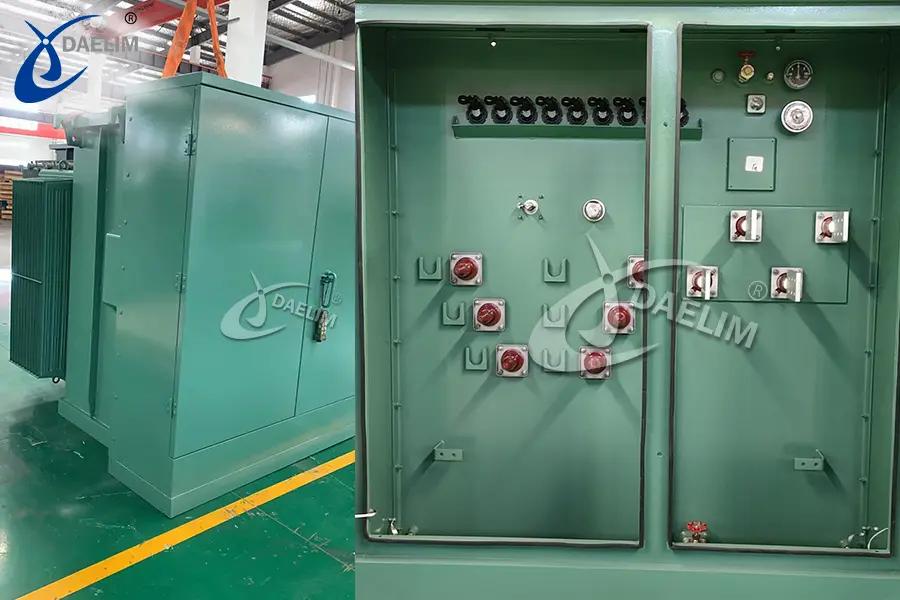

Behold the backbone of Canada's utility infrastructure—the 2MVA pad mounted transformer. With a primary voltage of 4160Grdy/2400V and a secondary voltage of 800GrdY/461V, this transformer stands as a testament to efficiency and reliability in power distribution. Crafted in strict accordance with CSA standards and CAN/CSA802.1 energy efficiency guidelines, it embodies the pinnacle of engineering excellence.
