1000 kVA Power Transformer-13800V Delta Primary-600GrdY/347 Secondary-KNAN/ANSI Grey
- Primary Voltage Ratings: 13.8 kV
- Secondary Voltage Ratings: 600/347
- CONNECTION TYPE: Dyn1
- TYPE: substation transformer,3 phase power transformer
- BIL: 90/30kV
- Standards: CSA, IEEE
- Application: BESS, Renewable energy, Date center, Utility, Oil & Gas, Industrial
- Power Rating: 1000 kVA （1 MVA）
- Certificate: UL, cUL, CSA, FM, CE
The S-1000-13.8-0.6 three-phase power transformer from Daelim Transformer boasts UL/cUL certification, ensuring safe, reliable, and efficient power distribution. With low operating costs, minimal carbon emissions, and affordable ownership costs, this transformer is ideal for a wide range of applications, typically installed outdoors for dependable performance in various environments.
Quote Now
| S-1000-13.8-0.6 Three Phase Power Transformer | Drain Valve w/ Sampler: Included |
| Phase: Three Phase | Rapid Rise Relay With Seal-in Relay(Qualitrol): Included |
| Capacity: 1000 KVA (1 MVA) | Lightning Arrestors: 3 Lightning Arrestors Included on Primary Side |
| Primary Voltage: 13800V Delta | Marshalling Box: Stainless Steel & Lockable |
| Primary BIL: 95 kV | CT Box: Included |
| Secondary Voltage: 600GrdY/347 | Nitrogen Blanket With Purge Valve: Included |
| Frequency: 60 Hz | L.V Full Height, Bottom Entry Cabinet: Included |
| Temperature Rise: 65°C | H.V Full Height, Bottom Entry Cabinet: Included |
| Capacity @ 65°C Temperature Rise: 1000 KVA (1 MVA) | Radiators: Included |
| Forced Air (Fans): None | Winding Material: Copper |
| Tap Changer: 5-position Tap Changer, (2) +/- 2.5% Taps Above and (2) +/- 2.5% Taps Below | Paint Type: ANSI Grey 61 |
| Efficiency Standard(s): Meets CSA C802.1 Standards, Meets CSA C88 Standards | Bushings: Side Mounted |
| Insulation Fluid: Biodegradable vegetable oil | Dimensions: 2510 x 1985 x 1520(mm) |
| Fluid Capacity: 690Kg | Weight: +/- 3150Kg |
| Cooling Class: KNAN |
|
| Winding Temperature Indicator: Included | You may enjoy: 1000 kVA Pad Mounted Transformer |
| Oil Temperature Indicator: Included |
|
| Vacuum Pressure Gauge: Included |
|
| Pressure Relief Device: Included | Ratings |
| Pressure Relief Valve: Included | Listed for the United States and Canada |
| Fill Valve: Included | Conforms to CSA, ANSI C57.12 Standards |
| Special Requirements Contact us for special requirements Tel / Whatsapp: 86-15801656761 E-mail: [email protected] | |
Transformer Features
With a capacity rating of 1000 KVA (1 MVA), this power transformer boasts a primary voltage of three-phase 13800V Delta and a secondary voltage of three-phase 600GrdY/347V. It is equipped with a 5-position tap changer, allowing for small voltage adjustments with two +/- 2.5% taps above and below. The high and low-voltage bushings are designed with a side exit configuration and a full-height bottom entry cabinet. Some accessories bear the Qualitrol branding.
Featuring copper winding material, this transformer enhances short-circuit resistance while offering superior reliability, mechanical strength, and a more compact size compared to aluminum alternatives. The transformer adopts a three-legged core construction and is air-cooled, eliminating the need for fans or mounting provisions.
Get Price1000 kVA Power Transformer
Temperature Rise
Featuring a 65°C temperature rise, this unit reduces heat waste, enhances reliability, and extends lifespan, meeting CSA standard efficiency requirements.
Insulation Fluid
The transformer utilizes vegetable oil (biodegradable) cooling fluid (KNAN) with a capacity of 150 gallons. Daelim Transformer also offers transformers with FR-3 oil fluid, if needed, with an FM Certificate.
Vegetable Oil
With a molecular structure containing O atoms, vegetable-insulating oil forms hydrogen bonds with water, enhancing moisture resistance and delaying aging. Its higher breakdown voltage and K-class flame retardant properties offer superior safety and operating limits compared to mineral oil.
Gauges
The system includes liquid level indicator, thermometer, pressure relief device, vacuum pressure gauge, and winding temperature indicator gauges with auxiliary contacts for alarm and trip functions.
Rapid Pressure Rise Relay
Functioning swiftly and effectively, the seal-in relay provides immediate responses to pressure irregularities, helping to maintain the transformer's integrity and prevent potential damage or downtime. By swiftly detecting and responding to pressure changes, this relay ensures the continued safe and reliable operation of the transformer system.
Lightning Arresters
Lightning arresters on the primary side provide over-voltage and transient voltage protection against lightning, internal switching, or voltage surges. These lightning arresters are designed to intercept and divert excessive voltage spikes away from the primary winding of the transformer, thereby preventing them from reaching sensitive electrical equipment connected to the system. By effectively dissipating the energy generated by lightning strikes or voltage surges, the arresters ensure the protection and integrity of the transformer and associated components.
Valves
Complete with essential features for optimal operation, including a pressure relief valve to release excess pressure, a fill valve for maintaining proper fluid levels, a drain valve equipped with a sampler port for easy fluid sampling, and a nitrogen blanket featuring a purge valve to ensure a controlled atmosphere within the transformer.
Mount
Suitable for outdoor applications.
Benefits
The transformer delivers noteworthy energy efficiency improvements, resulting in reduced power consumption and operational expenses. Additionally, its environmentally friendly design minimizes carbon emissions, contributing to a cleaner and more sustainable energy ecosystem. These factors collectively contribute to extending the lifespan of the transformer and further decreasing maintenance and replacement costs over time.
Applications
The transformer finds versatile applications across various sectors, including renewable energy installations, energy storage facilities, electric vehicle charging stations, data centers, industrial complexes, oil and gas operations, commercial establishments, military facilities, processing plants, power distribution networks, and utility infrastructure, among others.
Daelim Transformer is a distinguished manufacturer with a wealth of international project expertise. We specialize in rapid customization to tailor transformer solutions to your exact specifications.
Reach out to us at +86-15801656761 (WhatsApp) or [email protected]/ [email protected] to explore your requirements in depth.
Reading more about Three Phase Substation Transformer
Daelim Transformer Projects
Related Products
Related Article

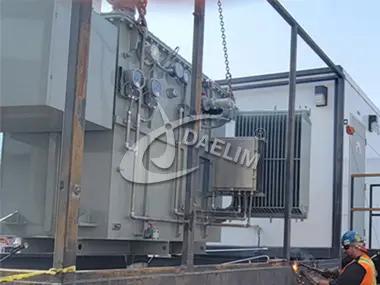

Daelim Transformer Achieves Milestones in 2023, Poised for Continued Success in 2024
