5 MVA (5000 kVA) Pad Mounted Transformer
- Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2,44 or others
- Secondary Voltage Ratings: 208GrdY/120;416GrdY/240,480GrdY/277,/600GrdY/347,220y/127,480V,415v,600v or others
- H.V. TAP RANGE: ±2×2.5% or others
- CONNECTION TYPE: Dyn11/YNyn0 or others
- TYPE: Loop feed/Radial feed
- BIL: 30-200 kV
- Standards: IEEE/ANSI, CSA
- Application: BESS, Data center, Industry, Renewable energy, EV charging
- Power Rating: 5 MVA (5000 kVA)
- Certificate: UL, cUL, CSA, SGS
Daelim Transformer is a professional manufacturer of transformers with UL listings and certifications for voltage levels up to 44kV, offering a comprehensive range of UL-certified pad-mounted transformers. Annually, we export Thousands of these transformers to the United States and Canada. Proficient in IEEE/ANSI, CSA, DOE, NEMA, and other standards, our team ensures compliance with diverse regulatory requirements. In addition to UL certification, we also hold CSA, MF, CESI certificates, and third-party SGS test reports. With extensive project experience, we understand that each project has unique requirements. That's why we offer customizable transformers, allowing adjustments to voltage, capacity, connection method, and special design to perfectly suit your needs. The 5000 kVA pad-mounted transformer can be customized to fit your project requirements. Contact Daelim Transformer today to receive the parameter sheet, drawings, and quotation for the 5000(5MVA) kVA Pad Mounted transformer.
Quote Now
5000 kVA Pad Mounted Transformer
The ZGS-Z-5000/22.86/4.16 is a 5000 kVA transformer designed for pad-mount installation with a radial feed configuration. This transformer boasts a unique five-legged core assembly and employs copper windings for optimal performance.
Key Electrical Specifications
Primary Voltage: 22,860 GrdY/13,200V
Secondary Voltage: 4,160 GrdY/2,400V
Vector Group: YNyn0
Contact Daelim Transformer5000 kVA Transformer Specifications
| 5000 kVA Transformer Specifications | |||
| Phase | 3 phase | Std. | IEEE C57.12.34 |
| Power rating | 5000 kVA | Config | Dead front/radial feed |
| Mounting | Pad Mount | Frequency | 60Hz |
| HV Voltage | 22860GrdY/13200 | Tap changer | 5-position |
| LV Voltage | 4160GrdY/2400V | Fluid Capacity | 2435L |
| HV BIL | 125kV | Total weight | 9100kG |
| LV BIL | 60kV | No load loss | 5200W |
| Vectorgroup | YNyn0 | On load loss | 30000W |
| Cooling method | KNAN | Impedance | 6.00% |
| Winding Material | Copper | Paint Color | Musell green |
| Core construction | 5-legged core | Capacity @ 65°C Temperature Rise | 5000kVA |
5000 kVA Transformer Features
High Voltage (HV) Compartment Features
Six Bayonet fuses
Eyebolt type H0 Bushing
Five-Position tap changer
Three HV bushing wells with 25 kV and 200A capacity
Three parking stands and three ground pads
Low Voltage (LV) Compartment Features
12 Deadbreak L.V bushings rated at 15kV and 600A
X0 Spade bushing with four holes
Five parking stands and three ground pads
Temperature indicator
Vacuum pressure gauge
Oil level gauge
Fill plug
Upper fill valve
Drain valve with 3/8” sampler
5 MVA Pad Mounted Transformer
5 MVA Pad Mounted Transformer types
Daelim has 5 mva loop feed pad mount transformer and 5mva radial feed pad mount transformer. There is also dead front and live front for you to choose from. For safety, most customers choose the 5MVA Dead Front Transformer.
Learn more about pad transformers: 3 Phase Pad Mounted Transformer
5 MVA Pad Mounted Transformer Outline Drawing
The picture below is Daelim's 13.8 kV/4.16kV 5 MVA pad mounted transformer outline drawing.
5000 kVA Pad Mounted Transformer Weight
Winding materials, the number of accessories, voltage levels, and efficiency values will affect the weight of the transformer. The following table is the weight of a 13.8/4.16 kV 5000kva pad-mounted transformer.
| 13.8 kV 5000kVA Padmount Transformer Weight | ||||||||
| Tank and accessories | 2010kg | |||||||
| Oil Weight | 2360L | |||||||
| Total Weight | 9000kg | |||||||
Learn more about Pad Mounted Transformer
5MVA Pad Mounted Transformers Dimensions
The following table shows the dimensions of the Daelim 13.8 kV 5MVA pad mount transformer.
| 12.47 kV 3MVA Padmount Transformer Dimension | ||||||||
| Height | 2880mm | |||||||
| Depth | 2200mm | |||||||
| Width | 1900mm | |||||||
5000 kVA Pad Mounted Transformer Packing
For the pad-mounted transformers of 5000 kVA, wooden boxes, and wooden pallets are usually packed. If you have special packaging requirements, you can tell the Daelim team to help you customize it.

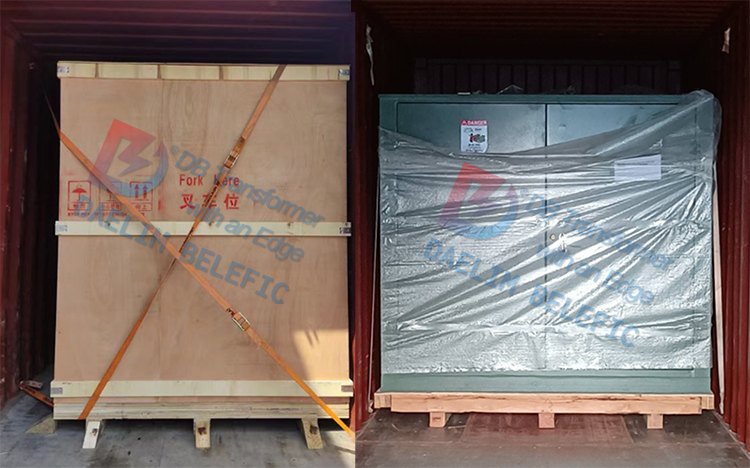

The picture below is the pad-mounted transformer packing of Daelim.
5000 kVA Pad Mounted Transformers Quality and Tech Control
The DAELIM factory has strict technical and quality control to ensure each transformer's reliable, safe, and electrical performance. Daelim 5000kva pad-mounted distribution transformers have an extended two-year warranty, and transformers have a service life of up to 40 years.
Down load: Daelim Tech Control
Please feel free to contact the Daelim Team if you have any concerns.
