The Ultimate Guide to delta wye transformer

Delta Wye transformer refers to a transformer type whose connection mode is delta Wye connection. Delta Wye connection is most commonly used on three phase transformer.

Beijing Daelim, located in China, is a company specializing in the production and sales of three-phase pad mounted transformer, single phase pad mounted transformer, single phase pole mounted transformer, substation transformer, distribution transformer, dry type transformer, and other types of transformers. Daelim sells transformers to the United States, Canada, Australia, the Philippines, and other countries. And Daelim transformer is very popular in North and South American markets.

Table of contents

What is a delta wye transformer?
What is the purpose of a Delta Wye transformer?
What is the difference between a Delta and a wye transformer?
How is a Delta-Wye transformer connected?
Does a wye transformer have a neutral?
Delta wye transformer applications
How to install a delta wye transformer?
How to repair a delta wye transformer after it has been damaged?
Delta wye transformer manufacturer

What is a delta wye transformer?

Delta Wye transformer is a kind of transformer under the transformer classification based on the connection mode. Three phase transformers often use delta Wye connection mode. There are also many kinds of three-phase transformers, including three-phase oil immersed transformer, three phase dry type transformer, etc. However, this connection method has a major disadvantage, that is, if any single-phase transformer in the delta Wye group fails or is damaged, its whole group will not continue to work normally. IEEE std.c57.12.00 specifies the change direction of the phasor angles between two circuits (high voltage side and low voltage side). If the positive sequence current and voltage on the low-voltage side of a transformer are 30 ° lower than that on the high-voltage side, this type of transformer is a delta Wye transformer. Usually, the high voltage flows through the primary winding and the low voltage flows through the secondary winding.

Read more: Basic Guide Of Delta Transformer

delta-wye-transformer

What is the purpose of a Delta Wye transformer?

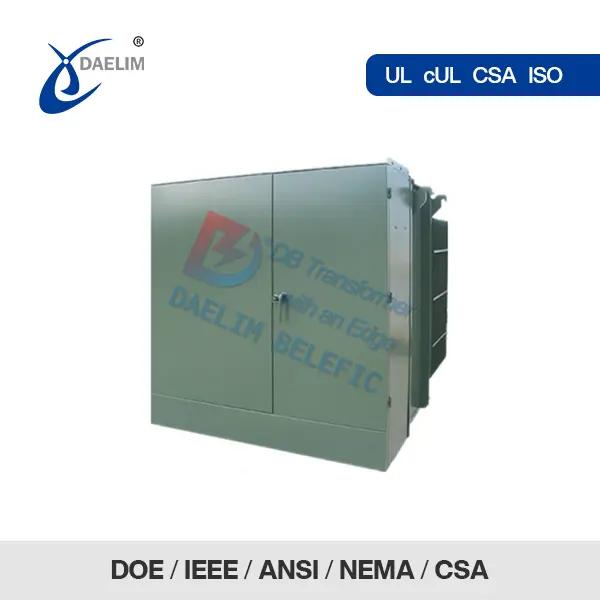

Delta Wye transformer usually plays the role of power supply in the distribution system, so it is common in industrial places, residential areas and commercial areas. Because delta Wye connection is often used in phase transformer, take three phase pad mounted transformer as an example. Three phase pad mounted transformer is a kind of distribution transformer, which is installed and used on the ground. Because the three phase pad mounted transformer has a box shaped metal shell, it not only protects various accessories of the transformer, but also is beautiful and safe. Based on the above situation, the three phase pad mounted transformer can be installed in commercial areas, residential areas, office buildings, etc. with a large flow of people, providing a stable power supply for many companies and families.

Learn more: The primary guide of delta star transformer

What is the difference between a Delta and a wye transformer?

In the distribution network, three-phase transformer is the most widely used and plays an irreplaceable role. There are many differences between a delta transformer and a wye transformer, which will be described next. First, a delta transformer, all single-phase loads are concentrated on a certain phase; A wye transformer, all single-phase loads are evenly distributed on each phase of the three phases. Second, in a wye transformer system, there is not only a three-phase conductor, but also a neutral conductor, which is generally grounded; In a delta transformer system, there are only three-phase conductors and no neutral conductors. Third, a wye transformer generally uses a three-phase four wire circuit to connect the terminal ends of all three windings together, and the neutral conductor is connected at the central intersection of the three-phase conductors, which is represented by "n"; A delta transformer connects the two ends of the winding end to end to form a closed-loop circuit similar to a triangle, thus forming a three-phase circuit. Fourth, a delta transformer only needs three wires, so the cost of equipment and construction is reduced; A wye transformer only needs one high-voltage bushing, while a delta transformer needs two high-voltage bushings, so the cost of the transformer will be reduced. Finally, a delta transformer is mainly used in distribution networks, while a wye transformer is not only used in transmission networks, but also in distribution networks, with a wider range of applications.

Read more:3 Phase Pad Mounted Transformer

How is a Delta-Wye transformer connected?

Delta-Wye Transformer Connection Connect is most commonly used in three-phase transformers. The secondary winding of Wye connect allows single-phase load to be distributed to neutral line among three phases, while Delta connect is all placed on one winding. Wye connect's the source neutral is connected to the load neutral. Therefore, even if there is no neutral wire, the source neutral and the load neutral can be used for grounding. Therefore, Wye connect has double protection function.

Maybe enjoy: How to choose pad-mounted transformer for your project?

Does a Wye transformer have a neutral?

The primary rule of transformers is that for any winding (whether primary or secondary), if the current cannot flow on one side, it must not flow on the other side. For Wye connect with a neutral grounding, if the neutral is not grounded, the current cannot flow and the transformer will fail.

Delta Wye transformer applications

delta wye transformer applications
The most common Delta-Wye transformer is three phase transformer, which is divided into three phase oil immersed transformer and three phase dry type transforme. R. Three phase transformer is widely used in circuits with frequencies of 50Hz and 60Hz and voltages below 660v, such as industry, mining, residential areas, schools, railways, high-rise buildings and medical institutions. Moreover, because three phase transformer can reduce the interference and noise generated inside the transformer, it is also widely used in high-precision equipment such as precision machine tools. At the same time, three phase transformer is also suitable for low-voltage distribution with low voltage but large fluctuation.

Daelim is a company specializing in the production of pad-mounted transformers. Transformers produced by Daelim include three phase oil immersed transformer and three phase dry type transformer. three phase oil immersed transformer includes three phase pad mounted. Transformer and three phase distribution transformer. Daelim has many years of experience in producing and selling Delta-Wye transformer, and has many customers in North and South American markets. Transformers produced by Daelim meet UL certification, ANSI/IEEE,CSA and other international standards, especially Single Phase Pad Mounted Transformer and three phase pad mounted transforer are popular in many countries and regions in North America. The transformers produced by Daelim not only have short production cycle, good quality and long service life, but also have good after-sales service, which can guarantee the maintenance and cleaning of the transformers.

You may enjoy: Daelim Single Phase Pad Mounted Transformer

delta-wye-transformer How to install a delta wye transformer

1. Before installing a delta wye transformer, first check whether the grounding procedure meets the requirements of transformer installation.

2.After selecting the appropriate grounding scheme for a delta wye transformer, the next step is to select the appropriate connector and wire.

3.A delta wye transformer shell needs to be connected to chassis ground.

4.Be sure to connect the external shell grounding terminal of delta wye transformer to the grounding rod.

5. Turn off the power and use the apt cable and connector.

6. Check whether the input wiring has sufficient length.

7. Choose a convenient location near a delta wye transformer to install apt fuse or circuit breaker.

8. Finally, connect the fuse or circuit breaker with the input voltage, and then connect it to the primary conductor of a delta wye transformer.

Before installing a delta wye transformer, you must contact the professionals in your area to ensure the safety of you and the installers, and you can be given the most professional guidance and help in installing transformers, so as to reduce unnecessary losses and casualties.

Read more about Transformer Installing

How to repair a delta wye transformer after it has been damaged

When the transformer is used for a long time, the radiator on the transformer will be corroded and damaged, which will lead to oil leakage to the outside. Therefore, the transformer should be repaired and maintained regularly, and the accessories that may have problems should be handled and replaced in time. Generally, a delta Wye transformer can carry out regular inspection, care, and maintenance from January to February, replace damaged or faulty transformer parts in time, and find potential risks as soon as possible. Otherwise, a small problem may turn into a big problem, and at this time, you will need to spend more. If you don't know how to repair it, you can call local professionals, which is also the safest way.

Delta Wye transformer manufacturer

dalta wye transformer manufacturer
Beijing Daelim has rich experience in the production and sales of transformers. Transformers are exported to many countries and regions in North America and South America and are widely praised and bought back by customers. Transformer products produced by Daelim mainly include single phase pad mounted transformer, three phase pad mounted transformer, single phase pole mounted transformer, three phase distribution transformer, etc. The transformers produced by Daelim conform to many international standards, such as IEEE, CSA, and UL certifications.
